sensorML - CompositeSolid

element CompositeSolid

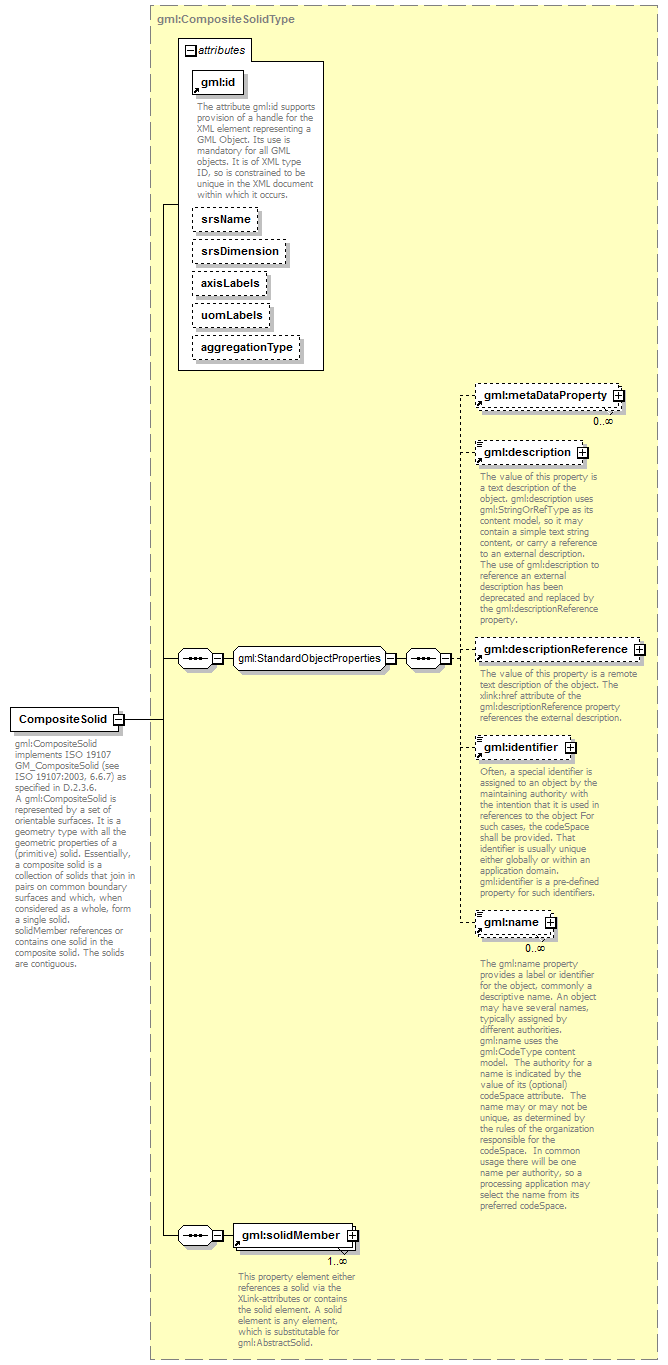

diagram

namespace

http://www.opengis.net/gml/3.2

type

properties

content	complex
substGrp	gml:AbstractSolid

children

gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:solidMember

used by

complexType

GeometricComplexPropertyType

attributes

Name

Type

Use

Default

Fixed

annotation

required

documentation

The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.

anyURI

positiveInteger

annotation

documentation

gml:CompositeSolid implements ISO 19107 GM_CompositeSolid (see ISO 19107:2003, 6.6.7) as specified in D.2.3.6.
A gml:CompositeSolid is represented by a set of orientable surfaces. It is a geometry type with all the geometric properties of a (primitive) solid. Essentially, a composite solid is a collection of solids that join in pairs on common boundary surfaces and which, when considered as a whole, form a single solid.
solidMember references or contains one solid in the composite solid. The solids are contiguous.

source

<element name="CompositeSolid" type="gml:CompositeSolidType" substitutionGroup="gml:AbstractSolid">
<annotation>
<documentation>gml:CompositeSolid implements ISO 19107 GM_CompositeSolid (see ISO 19107:2003, 6.6.7) as specified in D.2.3.6.
A gml:CompositeSolid is represented by a set of orientable surfaces. It is a geometry type with all the geometric properties of a (primitive) solid. Essentially, a composite solid is a collection of solids that join in pairs on common boundary surfaces and which, when considered as a whole, form a single solid.
solidMember references or contains one solid in the composite solid. The solids are contiguous.</documentation>
</annotation>
</element>
