complexType ConcatenatedOperationType

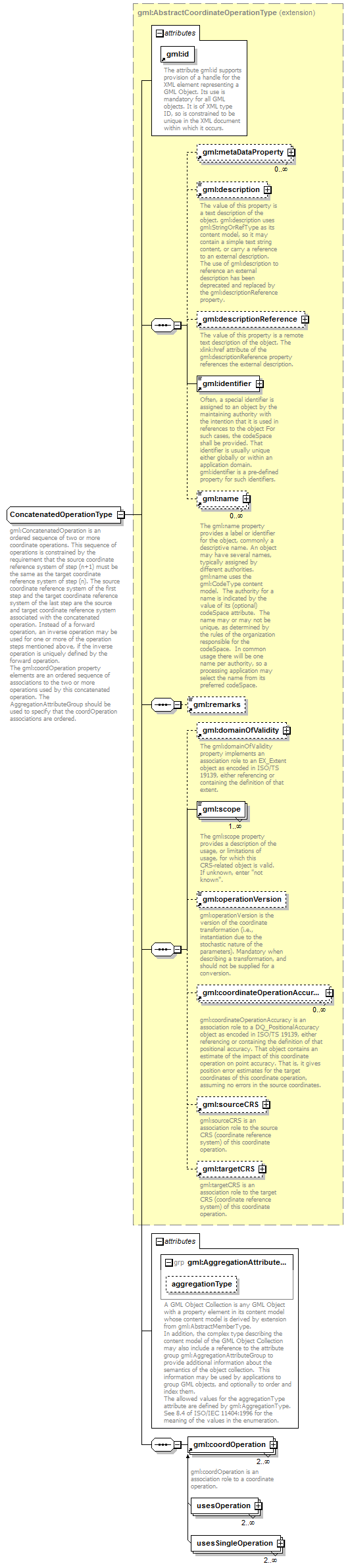

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractCoordinateOperationType
properties	base  gml:AbstractCoordinateOperationType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:remarks gml:domainOfValidity gml:scope gml:operationVersion gml:coordinateOperationAccuracy gml:sourceCRS gml:targetCRS gml:coordOperation
used by	element  ConcatenatedOperation
attributes	Name   Type   Use   Default   Fixed   annotation id ID required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. aggregationType gml:AggregationType
annotation	documentation gml:ConcatenatedOperation is an ordered sequence of two or more coordinate operations. This sequence of operations is constrained by the requirement that the source coordinate reference system of step (n+1) must be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated operation. Instead of a forward operation, an inverse operation may be used for one or more of the operation steps mentioned above, if the inverse operation is uniquely defined by the forward operation. The gml:coordOperation property elements are an ordered sequence of associations to the two or more operations used by this concatenated operation. The AggregationAttributeGroup should be used to specify that the coordOperation associations are ordered.
source	<complexType name="ConcatenatedOperationType">   <annotation>     <documentation>gml:ConcatenatedOperation is an ordered sequence of two or more coordinate operations. This sequence of operations is constrained by the requirement that the source coordinate reference system of step (n+1) must be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated operation. Instead of a forward operation, an inverse operation may be used for one or more of the operation steps mentioned above, if the inverse operation is uniquely defined by the forward operation. The gml:coordOperation property elements are an ordered sequence of associations to the two or more operations used by this concatenated operation. The AggregationAttributeGroup should be used to specify that the coordOperation associations are ordered.</documentation>   </annotation>   <complexContent>     <extension base="gml:AbstractCoordinateOperationType">       <sequence>         <element ref="gml:coordOperation" minOccurs="2" maxOccurs="unbounded"/>       </sequence>       <attributeGroup ref="gml:AggregationAttributeGroup"/>     </extension>   </complexContent> </complexType>
