element Edge

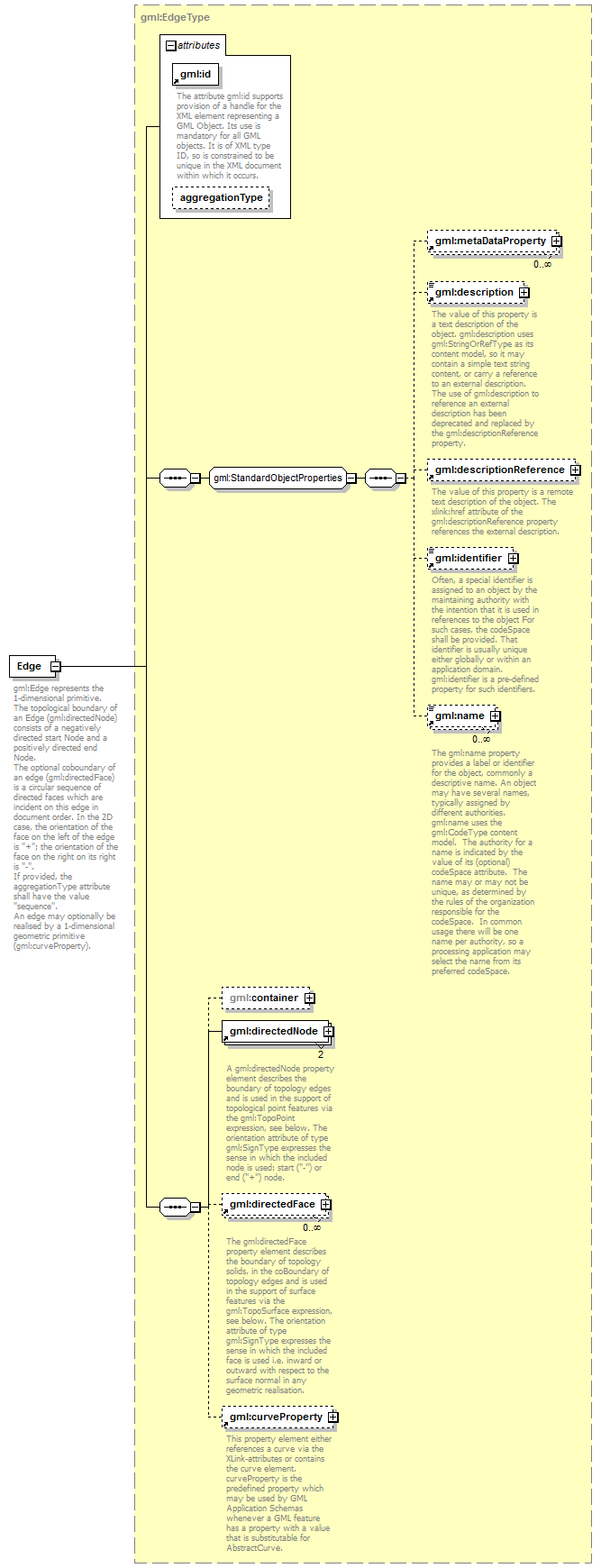

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:EdgeType
properties	content  complex substGrp  gml:AbstractTopoPrimitive
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:container gml:directedNode gml:directedFace gml:curveProperty
used by	complexTypes  DirectedEdgePropertyType NodeOrEdgePropertyType
attributes	Name   Type   Use   Default   Fixed   annotation id ID required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. aggregationType gml:AggregationType
annotation	documentation gml:Edge represents the 1-dimensional primitive. The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node.   The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-". If provided, the aggregationType attribute shall have the value "sequence". An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).
source	<element name="Edge" type="gml:EdgeType" substitutionGroup="gml:AbstractTopoPrimitive">   <annotation>     <documentation>gml:Edge represents the 1-dimensional primitive. The topological boundary of an Edge (gml:directedNode) consists of a negatively directed start Node and a positively directed end Node.   The optional coboundary of an edge (gml:directedFace) is a circular sequence of directed faces which are incident on this edge in document order. In the 2D case, the orientation of the face on the left of the edge is "+"; the orientation of the face on the right on its right is "-". If provided, the aggregationType attribute shall have the value "sequence". An edge may optionally be realised by a 1-dimensional geometric primitive (gml:curveProperty).</documentation>   </annotation> </element>
