element Ring

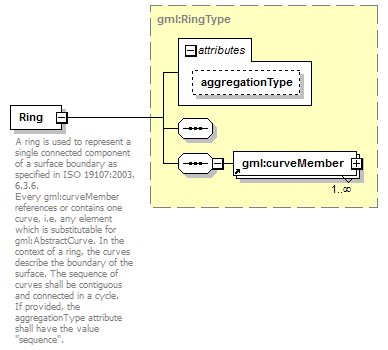

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:RingType
properties	content  complex substGrp  gml:AbstractRing
children	gml:curveMember
used by	complexType  RingPropertyType
attributes	Name   Type   Use   Default   Fixed   annotation aggregationType gml:AggregationType
annotation	documentation A ring is used to represent a single connected component of a surface boundary as specified in ISO 19107:2003, 6.3.6. Every gml:curveMember references or contains one curve, i.e. any element which is substitutable for gml:AbstractCurve. In the context of a ring, the curves describe the boundary of the surface. The sequence of curves shall be contiguous and connected in a cycle. If provided, the aggregationType attribute shall have the value "sequence".
source	<element name="Ring" type="gml:RingType" substitutionGroup="gml:AbstractRing">   <annotation>     <documentation>A ring is used to represent a single connected component of a surface boundary as specified in ISO 19107:2003, 6.3.6. Every gml:curveMember references or contains one curve, i.e. any element which is substitutable for gml:AbstractCurve. In the context of a ring, the curves describe the boundary of the surface. The sequence of curves shall be contiguous and connected in a cycle. If provided, the aggregationType attribute shall have the value "sequence".</documentation>   </annotation> </element>
