element Surface

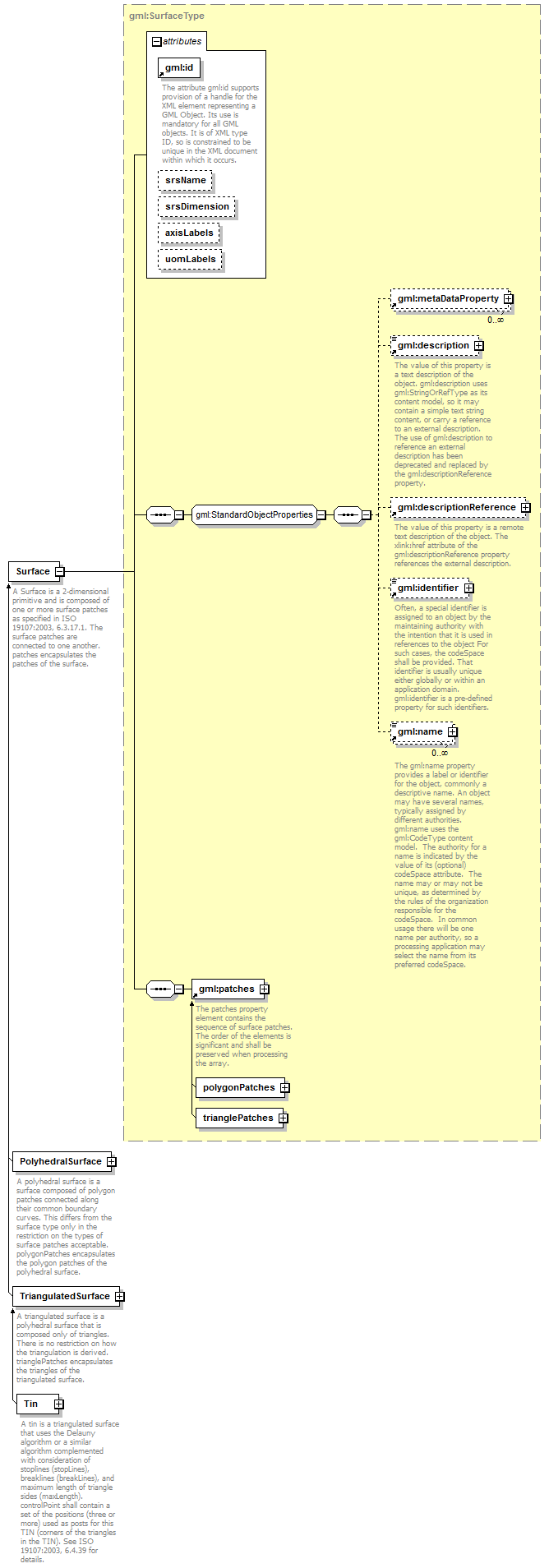

diagram sensorML_p1267.png
namespace http://www.opengis.net/gml/3.2
type gml:SurfaceType
properties
content complex
substGrp gml:AbstractSurface
children gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:patches
attributes
Name  Type  Use  Default  Fixed  annotation
idIDrequired
documentation
The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs.
srsNameanyURI
srsDimensionpositiveInteger
axisLabelsgml:NCNameList
uomLabelsgml:NCNameList
annotation
documentation
A Surface is a 2-dimensional primitive and is composed of one or more surface patches as specified in ISO 19107:2003, 6.3.17.1. The surface patches are connected to one another.
patches encapsulates the patches of the surface.
source <element name="Surface" type="gml:SurfaceType" substitutionGroup="gml:AbstractSurface">
  <annotation>
    <documentation>A Surface is a 2-dimensional primitive and is composed of one or more surface patches as specified in ISO 19107:2003, 6.3.17.1. The surface patches are connected to one another.
patches encapsulates the patches of the surface.</documentation>
  </annotation>
</element>
