complexType ArcByCenterPointType

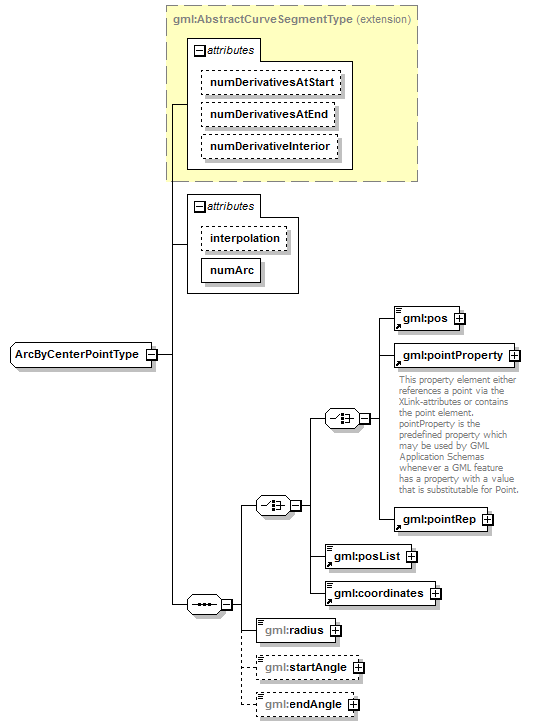

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractCurveSegmentType
properties	base  gml:AbstractCurveSegmentType
children	gml:pos gml:pointProperty gml:pointRep gml:posList gml:coordinates gml:radius gml:startAngle gml:endAngle
used by	element  ArcByCenterPoint complexType  CircleByCenterPointType
attributes	Name   Type   Use   Default   Fixed   annotation numDerivativesAtStart integer    0      numDerivativesAtEnd integer    0      numDerivativeInterior integer    0      interpolation gml:CurveInterpolationType       circularArcCenterPointWithRadius   numArc integer required      1
source	<complexType name="ArcByCenterPointType">   <complexContent>     <extension base="gml:AbstractCurveSegmentType">       <sequence>         <choice>           <choice>             <element ref="gml:pos"/>             <element ref="gml:pointProperty"/>             <element ref="gml:pointRep"/>           </choice>           <element ref="gml:posList"/>           <element ref="gml:coordinates"/>         </choice>         <element name="radius" type="gml:LengthType"/>         <element name="startAngle" type="gml:AngleType" minOccurs="0"/>         <element name="endAngle" type="gml:AngleType" minOccurs="0"/>       </sequence>       <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArcCenterPointWithRadius"/>       <attribute name="numArc" type="integer" use="required" fixed="1"/>     </extension>   </complexContent> </complexType>

attribute ArcByCenterPointType/@interpolation

type	gml:CurveInterpolationType
properties	isRef  0 fixed  circularArcCenterPointWithRadius
facets	Kind  Value  annotation  enumeration  linear  enumeration  geodesic  enumeration  circularArc3Points  enumeration  circularArc2PointWithBulge  enumeration  circularArcCenterPointWithRadius  enumeration  elliptical  enumeration  clothoid  enumeration  conic  enumeration  polynomialSpline  enumeration  cubicSpline  enumeration  rationalSpline
source	<attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArcCenterPointWithRadius"/>

attribute ArcByCenterPointType/@numArc

type	integer
properties	isRef  0 fixed  1 use  required
source	<attribute name="numArc" type="integer" use="required" fixed="1"/>

element ArcByCenterPointType/radius

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
source	<element name="radius" type="gml:LengthType"/>

element ArcByCenterPointType/startAngle

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:AngleType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
source	<element name="startAngle" type="gml:AngleType" minOccurs="0"/>

element ArcByCenterPointType/endAngle

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:AngleType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
source	<element name="endAngle" type="gml:AngleType" minOccurs="0"/>
