complexType ArraySettingPropertyType

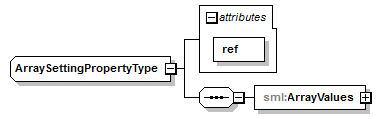

diagram
namespace	http://www.opengis.net/sensorML/2.0
children	sml:ArrayValues
attributes	Name   Type   Use   Default   Fixed   annotation ref sml:DataComponentPathType required
source	<complexType name="ArraySettingPropertyType">   <sequence>     <element name="ArrayValues">       <complexType>         <sequence>           <element name="encoding">             <complexType>               <sequence>                 <element ref="swe:AbstractEncoding"/>               </sequence>             </complexType>           </element>           <element name="value" type="swe:EncodedValuesPropertyType"/>         </sequence>       </complexType>     </element>   </sequence>   <attribute name="ref" type="sml:DataComponentPathType" use="required"/> </complexType>

attribute ArraySettingPropertyType/@ref

type	sml:DataComponentPathType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  ([a-zA-Z_][a-zA-Z0-9_\-\.]*)(/[a-zA-Z_][a-zA-Z0-9_\-\.]*)*
source	<attribute name="ref" type="sml:DataComponentPathType" use="required"/>

element ArraySettingPropertyType/ArrayValues

diagram
namespace	http://www.opengis.net/sensorML/2.0
properties	isRef  0 content  complex
children	sml:encoding sml:value
source	<element name="ArrayValues">   <complexType>     <sequence>       <element name="encoding">         <complexType>           <sequence>             <element ref="swe:AbstractEncoding"/>           </sequence>         </complexType>       </element>       <element name="value" type="swe:EncodedValuesPropertyType"/>     </sequence>   </complexType> </element>

element ArraySettingPropertyType/ArrayValues/encoding

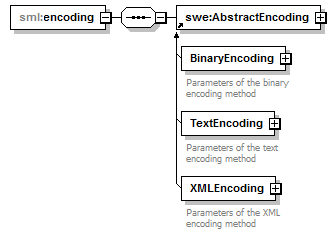

diagram
namespace	http://www.opengis.net/sensorML/2.0
properties	isRef  0 content  complex
children	swe:AbstractEncoding
source	<element name="encoding">   <complexType>     <sequence>       <element ref="swe:AbstractEncoding"/>     </sequence>   </complexType> </element>

element ArraySettingPropertyType/ArrayValues/value

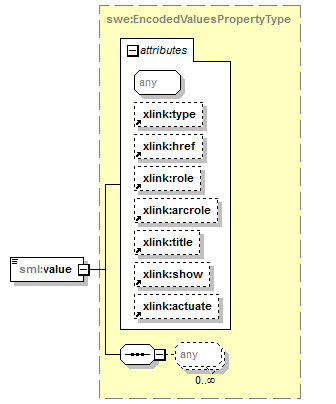

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	swe:EncodedValuesPropertyType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
source	<element name="value" type="swe:EncodedValuesPropertyType"/>
