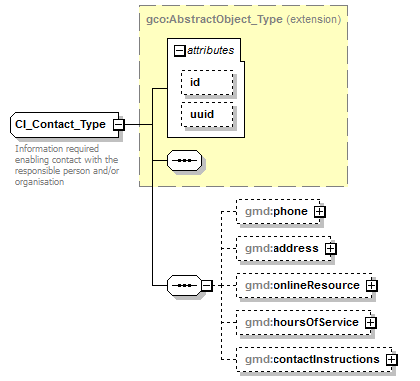

complexType CI_Contact_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gco:AbstractObject_Type
properties	base  gco:AbstractObject_Type
children	gmd:phone gmd:address gmd:onlineResource gmd:hoursOfService gmd:contactInstructions
used by	element  CI_Contact
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Information required enabling contact with the  responsible person and/or organisation
source	<complexType name="CI_Contact_Type">   <annotation>     <documentation>Information required enabling contact with the  responsible person and/or organisation</documentation>   </annotation>   <complexContent>     <extension base="gco:AbstractObject_Type">       <sequence>         <element name="phone" type="gmd:CI_Telephone_PropertyType" minOccurs="0"/>         <element name="address" type="gmd:CI_Address_PropertyType" minOccurs="0"/>         <element name="onlineResource" type="gmd:CI_OnlineResource_PropertyType" minOccurs="0"/>         <element name="hoursOfService" type="gco:CharacterString_PropertyType" minOccurs="0"/>         <element name="contactInstructions" type="gco:CharacterString_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

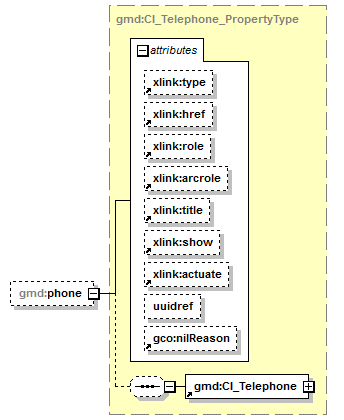

element CI_Contact_Type/phone

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:CI_Telephone_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:CI_Telephone
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="phone" type="gmd:CI_Telephone_PropertyType" minOccurs="0"/>

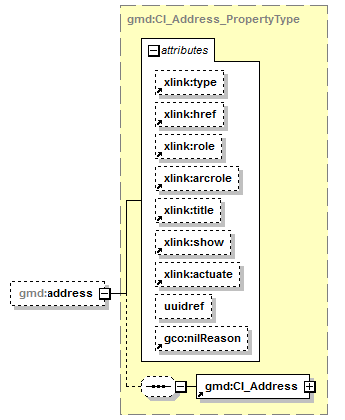

element CI_Contact_Type/address

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:CI_Address_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:CI_Address
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="address" type="gmd:CI_Address_PropertyType" minOccurs="0"/>

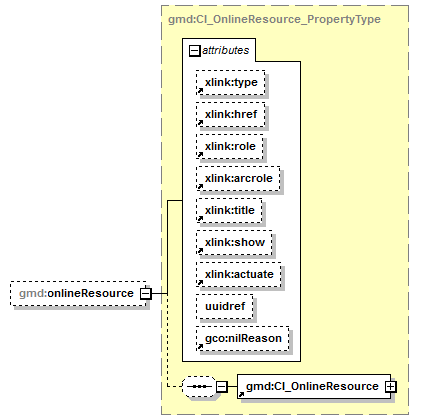

element CI_Contact_Type/onlineResource

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:CI_OnlineResource_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:CI_OnlineResource
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="onlineResource" type="gmd:CI_OnlineResource_PropertyType" minOccurs="0"/>

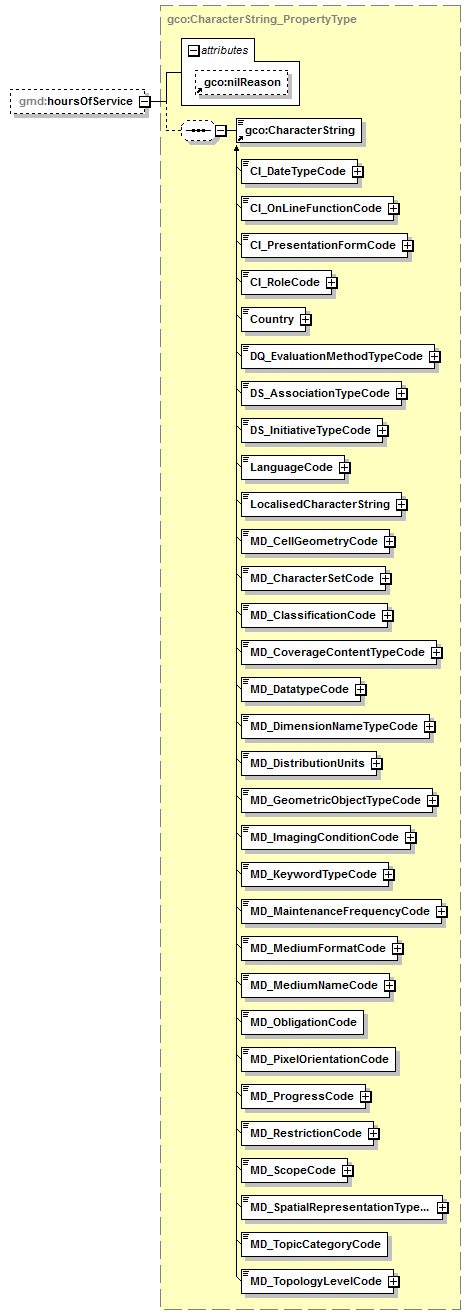

element CI_Contact_Type/hoursOfService

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="hoursOfService" type="gco:CharacterString_PropertyType" minOccurs="0"/>

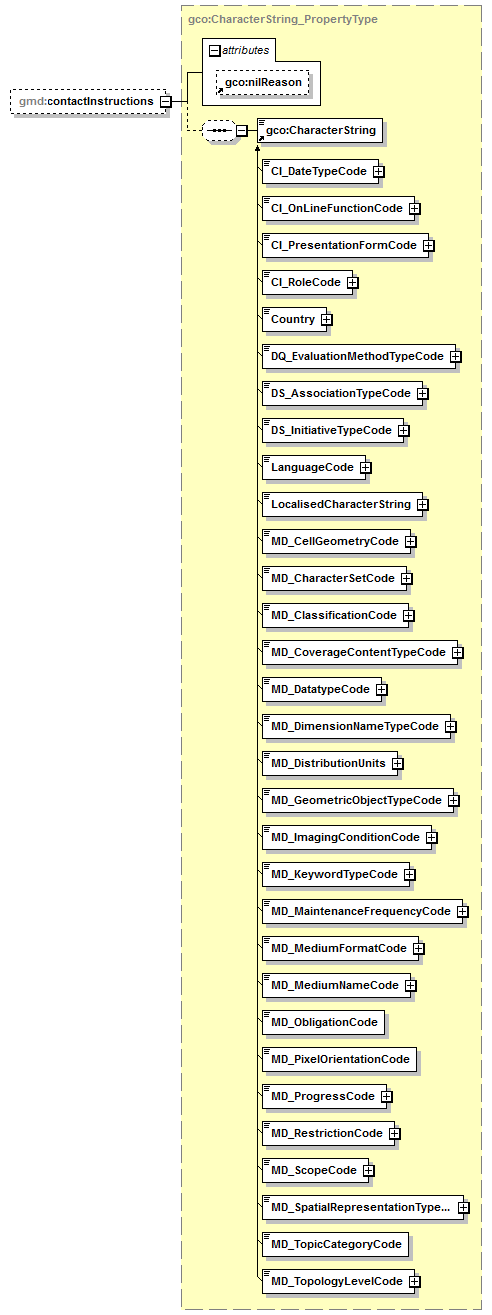

element CI_Contact_Type/contactInstructions

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="contactInstructions" type="gco:CharacterString_PropertyType" minOccurs="0"/>
