complexType ClothoidType

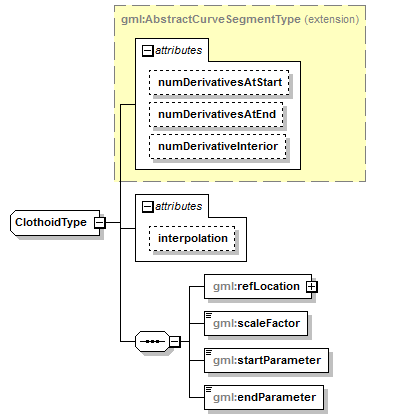

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractCurveSegmentType
properties	base  gml:AbstractCurveSegmentType
children	gml:refLocation gml:scaleFactor gml:startParameter gml:endParameter
used by	element  Clothoid
attributes	Name   Type   Use   Default   Fixed   annotation numDerivativesAtStart integer    0      numDerivativesAtEnd integer    0      numDerivativeInterior integer    0      interpolation gml:CurveInterpolationType       clothoid
source	<complexType name="ClothoidType">   <complexContent>     <extension base="gml:AbstractCurveSegmentType">       <sequence>         <element name="refLocation">           <complexType>             <sequence>               <element ref="gml:AffinePlacement"/>             </sequence>           </complexType>         </element>         <element name="scaleFactor" type="decimal"/>         <element name="startParameter" type="double"/>         <element name="endParameter" type="double"/>       </sequence>       <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="clothoid"/>     </extension>   </complexContent> </complexType>

attribute ClothoidType/@interpolation

type	gml:CurveInterpolationType
properties	isRef  0 fixed  clothoid
facets	Kind  Value  annotation  enumeration  linear  enumeration  geodesic  enumeration  circularArc3Points  enumeration  circularArc2PointWithBulge  enumeration  circularArcCenterPointWithRadius  enumeration  elliptical  enumeration  clothoid  enumeration  conic  enumeration  polynomialSpline  enumeration  cubicSpline  enumeration  rationalSpline
source	<attribute name="interpolation" type="gml:CurveInterpolationType" fixed="clothoid"/>

element ClothoidType/refLocation

diagram
namespace	http://www.opengis.net/gml/3.2
properties	isRef  0 content  complex
children	gml:AffinePlacement
source	<element name="refLocation">   <complexType>     <sequence>       <element ref="gml:AffinePlacement"/>     </sequence>   </complexType> </element>

element ClothoidType/scaleFactor

diagram
namespace	http://www.opengis.net/gml/3.2
type	decimal
properties	isRef  0 content  simple
source	<element name="scaleFactor" type="decimal"/>

element ClothoidType/startParameter

diagram
namespace	http://www.opengis.net/gml/3.2
type	double
properties	isRef  0 content  simple
source	<element name="startParameter" type="double"/>

element ClothoidType/endParameter

diagram
namespace	http://www.opengis.net/gml/3.2
type	double
properties	isRef  0 content  simple
source	<element name="endParameter" type="double"/>
