complexType ComponentType

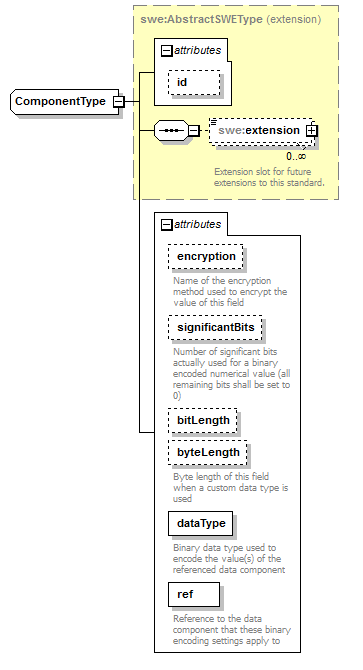

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractSWEType
properties	base  swe:AbstractSWEType
children	swe:extension
used by	element  Component
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         encryption anyURI optional         documentation Name of the encryption method used to encrypt the value of this field significantBits integer optional         documentation Number of significant bits actually used for a binary encoded numerical value (all remaining bits shall be set to 0) bitLength integer optional         byteLength integer optional         documentation Byte length of this field when a custom data type is used dataType anyURI required         documentation Binary data type used to encode the value(s) of the referenced data component ref string required         documentation Reference to the data component that these binary encoding settings apply to
source	<complexType name="ComponentType">   <complexContent>     <extension base="swe:AbstractSWEType">       <attribute name="encryption" type="anyURI" use="optional">         <annotation>           <documentation>Name of the encryption method used to encrypt the value of this field</documentation>         </annotation>       </attribute>       <attribute name="significantBits" type="integer" use="optional">         <annotation>           <documentation>Number of significant bits actually used for a binary encoded numerical value (all remaining bits shall be set to 0)</documentation>         </annotation>       </attribute>       <attribute name="bitLength" type="integer" use="optional"/>       <attribute name="byteLength" type="integer" use="optional">         <annotation>           <documentation>Byte length of this field when a custom data type is used</documentation>         </annotation>       </attribute>       <attribute name="dataType" type="anyURI" use="required">         <annotation>           <documentation>Binary data type used to encode the value(s) of the referenced data component</documentation>         </annotation>       </attribute>       <attribute name="ref" type="string" use="required">         <annotation>           <documentation>Reference to the data component that these binary encoding settings apply to</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute ComponentType/@encryption

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Name of the encryption method used to encrypt the value of this field
source	<attribute name="encryption" type="anyURI" use="optional">   <annotation>     <documentation>Name of the encryption method used to encrypt the value of this field</documentation>   </annotation> </attribute>

attribute ComponentType/@significantBits

type	integer
properties	isRef  0 use  optional
annotation	documentation Number of significant bits actually used for a binary encoded numerical value (all remaining bits shall be set to 0)
source	<attribute name="significantBits" type="integer" use="optional">   <annotation>     <documentation>Number of significant bits actually used for a binary encoded numerical value (all remaining bits shall be set to 0)</documentation>   </annotation> </attribute>

attribute ComponentType/@bitLength

type	integer
properties	isRef  0 use  optional
source	<attribute name="bitLength" type="integer" use="optional"/>

attribute ComponentType/@byteLength

type	integer
properties	isRef  0 use  optional
annotation	documentation Byte length of this field when a custom data type is used
source	<attribute name="byteLength" type="integer" use="optional">   <annotation>     <documentation>Byte length of this field when a custom data type is used</documentation>   </annotation> </attribute>

attribute ComponentType/@dataType

type	anyURI
properties	isRef  0 use  required
annotation	documentation Binary data type used to encode the value(s) of the referenced data component
source	<attribute name="dataType" type="anyURI" use="required">   <annotation>     <documentation>Binary data type used to encode the value(s) of the referenced data component</documentation>   </annotation> </attribute>

attribute ComponentType/@ref

type	string
properties	isRef  0 use  required
annotation	documentation Reference to the data component that these binary encoding settings apply to
source	<attribute name="ref" type="string" use="required">   <annotation>     <documentation>Reference to the data component that these binary encoding settings apply to</documentation>   </annotation> </attribute>
