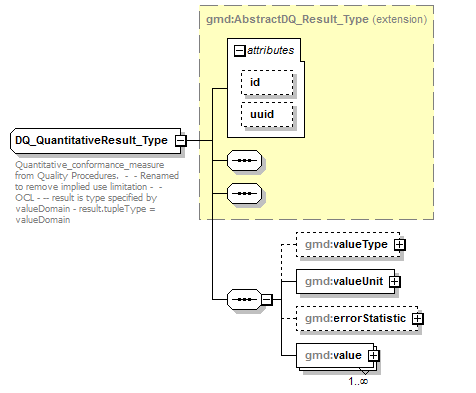

complexType DQ_QuantitativeResult_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:AbstractDQ_Result_Type
properties	base  gmd:AbstractDQ_Result_Type
children	gmd:valueType gmd:valueUnit gmd:errorStatistic gmd:value
used by	element  DQ_QuantitativeResult
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Quantitative_conformance_measure from Quality Procedures.  -  - Renamed to remove implied use limitation -  - OCL - -- result is type specified by valueDomain - result.tupleType = valueDomain
source	<complexType name="DQ_QuantitativeResult_Type">   <annotation>     <documentation>Quantitative_conformance_measure from Quality Procedures.  -  - Renamed to remove implied use limitation -  - OCL - -- result is type specified by valueDomain - result.tupleType = valueDomain</documentation>   </annotation>   <complexContent>     <extension base="gmd:AbstractDQ_Result_Type">       <sequence>         <element name="valueType" type="gco:RecordType_PropertyType" minOccurs="0"/>         <element name="valueUnit" type="gco:UnitOfMeasure_PropertyType"/>         <element name="errorStatistic" type="gco:CharacterString_PropertyType" minOccurs="0"/>         <element name="value" type="gco:Record_PropertyType" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

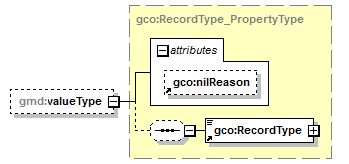

element DQ_QuantitativeResult_Type/valueType

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:RecordType_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:RecordType
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="valueType" type="gco:RecordType_PropertyType" minOccurs="0"/>

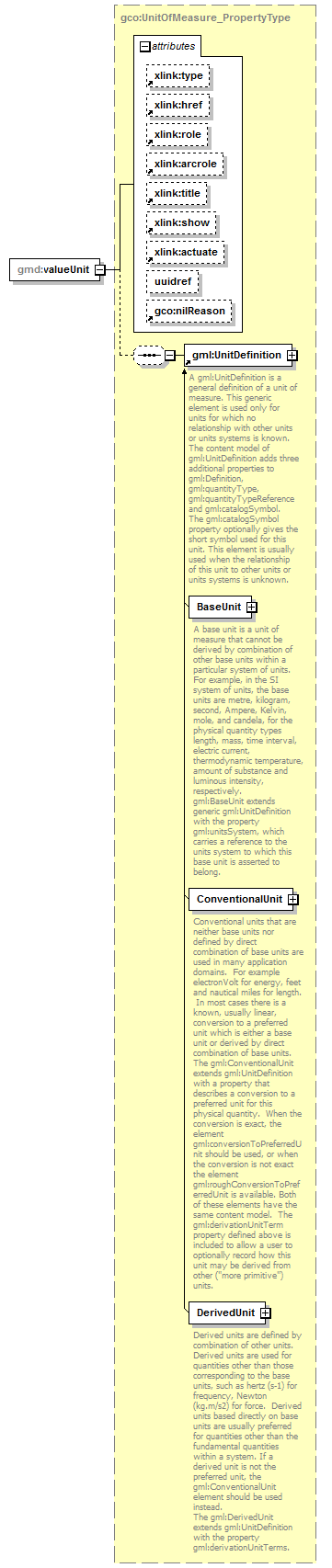

element DQ_QuantitativeResult_Type/valueUnit

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:UnitOfMeasure_PropertyType
properties	isRef  0 content  complex
children	gml:UnitDefinition
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="valueUnit" type="gco:UnitOfMeasure_PropertyType"/>

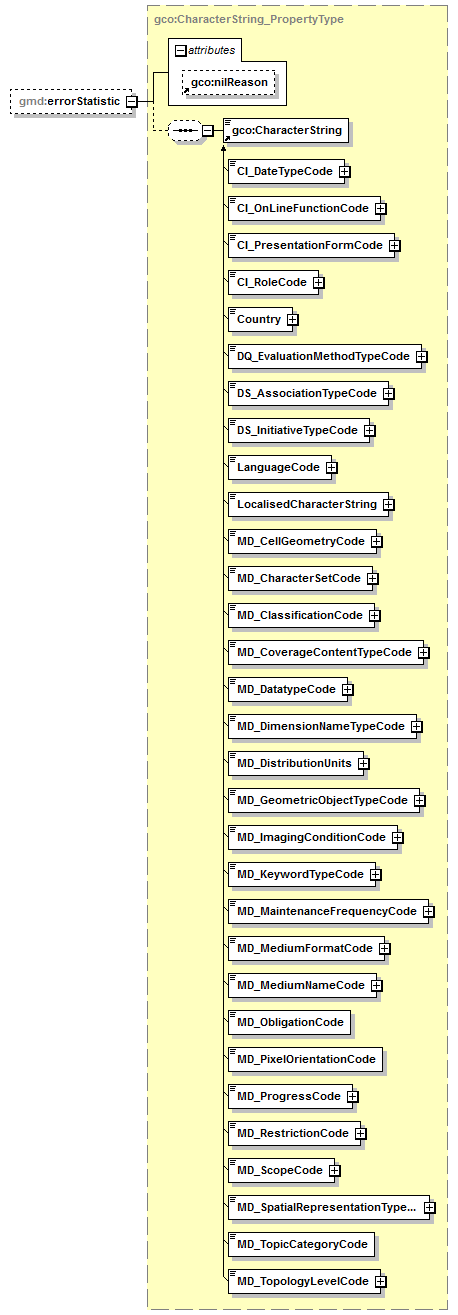

element DQ_QuantitativeResult_Type/errorStatistic

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="errorStatistic" type="gco:CharacterString_PropertyType" minOccurs="0"/>

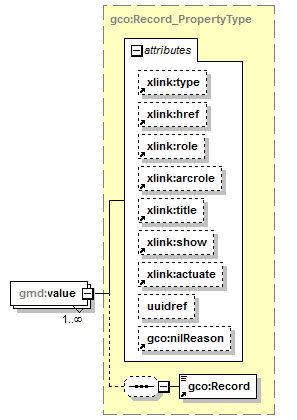

element DQ_QuantitativeResult_Type/value

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Record_PropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	gco:Record
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="value" type="gco:Record_PropertyType" maxOccurs="unbounded"/>
