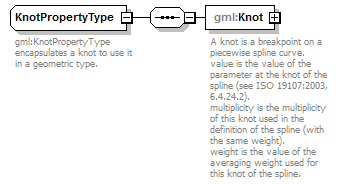

complexType KnotPropertyType

diagram
namespace	http://www.opengis.net/gml/3.2
children	gml:Knot
used by	elements  BSplineType/knot BezierType/knot
annotation	documentation gml:KnotPropertyType encapsulates a knot to use it in a geometric type.
source	<complexType name="KnotPropertyType">   <annotation>     <documentation>gml:KnotPropertyType encapsulates a knot to use it in a geometric type.</documentation>   </annotation>   <sequence>     <element name="Knot" type="gml:KnotType">       <annotation>         <documentation>A knot is a breakpoint on a piecewise spline curve. value is the value of the parameter at the knot of the spline (see ISO 19107:2003, 6.4.24.2). multiplicity is the multiplicity of this knot used in the definition of the spline (with the same weight). weight is the value of the averaging weight used for this knot of the spline.</documentation>       </annotation>     </element>   </sequence> </complexType>

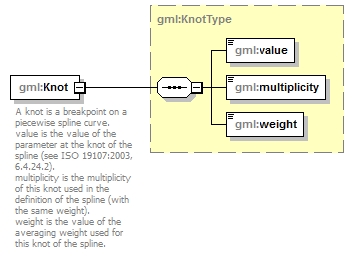

element KnotPropertyType/Knot

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:KnotType
properties	isRef  0 content  complex
children	gml:value gml:multiplicity gml:weight
annotation	documentation A knot is a breakpoint on a piecewise spline curve. value is the value of the parameter at the knot of the spline (see ISO 19107:2003, 6.4.24.2). multiplicity is the multiplicity of this knot used in the definition of the spline (with the same weight). weight is the value of the averaging weight used for this knot of the spline.
source	<element name="Knot" type="gml:KnotType">   <annotation>     <documentation>A knot is a breakpoint on a piecewise spline curve. value is the value of the parameter at the knot of the spline (see ISO 19107:2003, 6.4.24.2). multiplicity is the multiplicity of this knot used in the definition of the spline (with the same weight). weight is the value of the averaging weight used for this knot of the spline.</documentation>   </annotation> </element>
