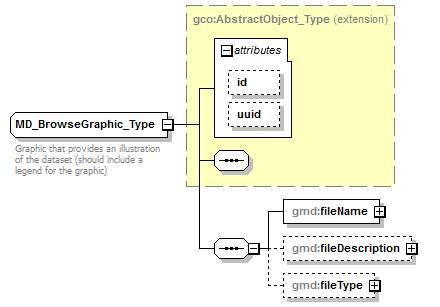

complexType MD_BrowseGraphic_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gco:AbstractObject_Type
properties	base  gco:AbstractObject_Type
children	gmd:fileName gmd:fileDescription gmd:fileType
used by	element  MD_BrowseGraphic
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Graphic that provides an illustration of the dataset (should include a legend for the graphic)
source	<complexType name="MD_BrowseGraphic_Type">   <annotation>     <documentation>Graphic that provides an illustration of the dataset (should include a legend for the graphic)</documentation>   </annotation>   <complexContent>     <extension base="gco:AbstractObject_Type">       <sequence>         <element name="fileName" type="gco:CharacterString_PropertyType"/>         <element name="fileDescription" type="gco:CharacterString_PropertyType" minOccurs="0"/>         <element name="fileType" type="gco:CharacterString_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

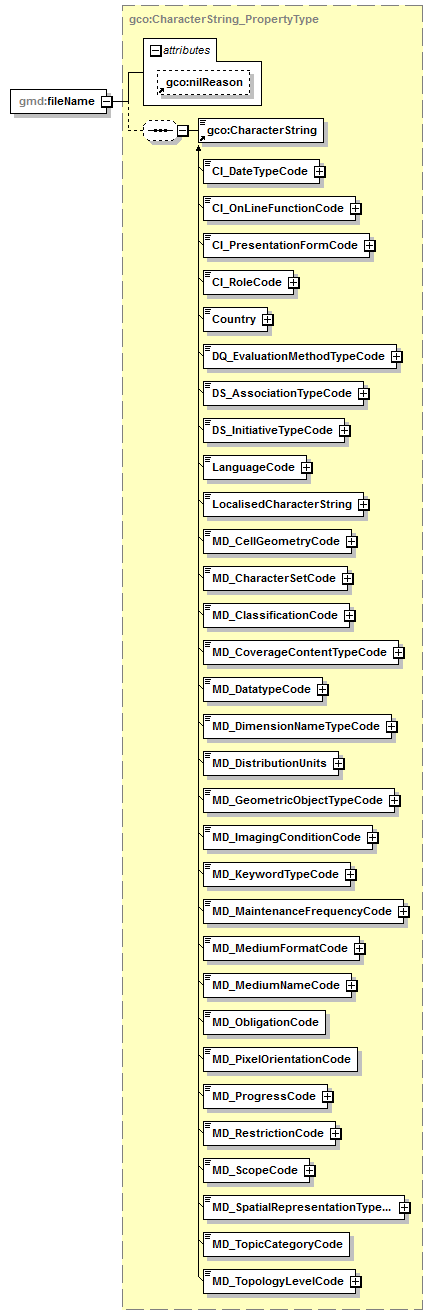

element MD_BrowseGraphic_Type/fileName

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="fileName" type="gco:CharacterString_PropertyType"/>

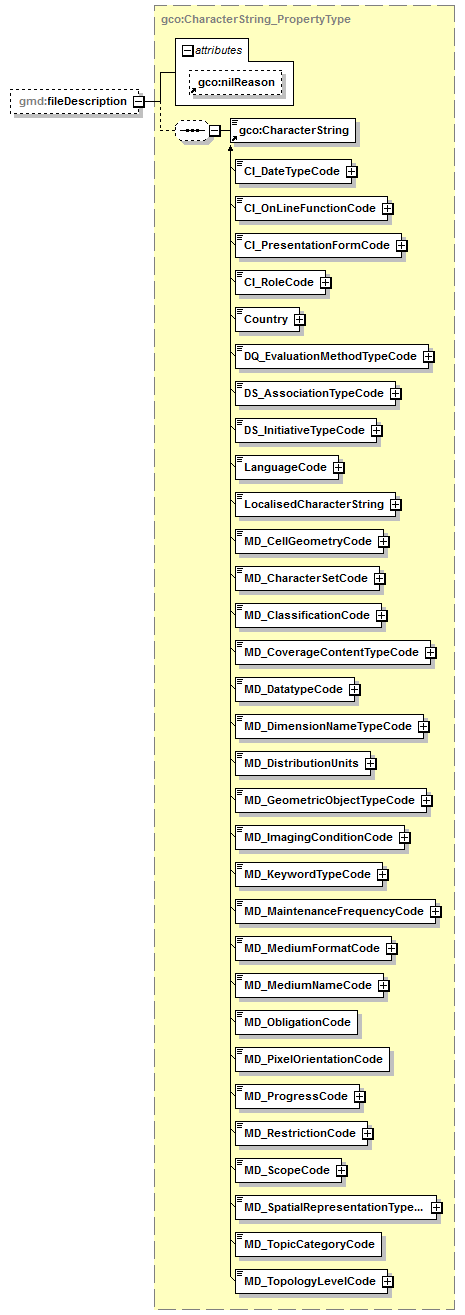

element MD_BrowseGraphic_Type/fileDescription

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="fileDescription" type="gco:CharacterString_PropertyType" minOccurs="0"/>

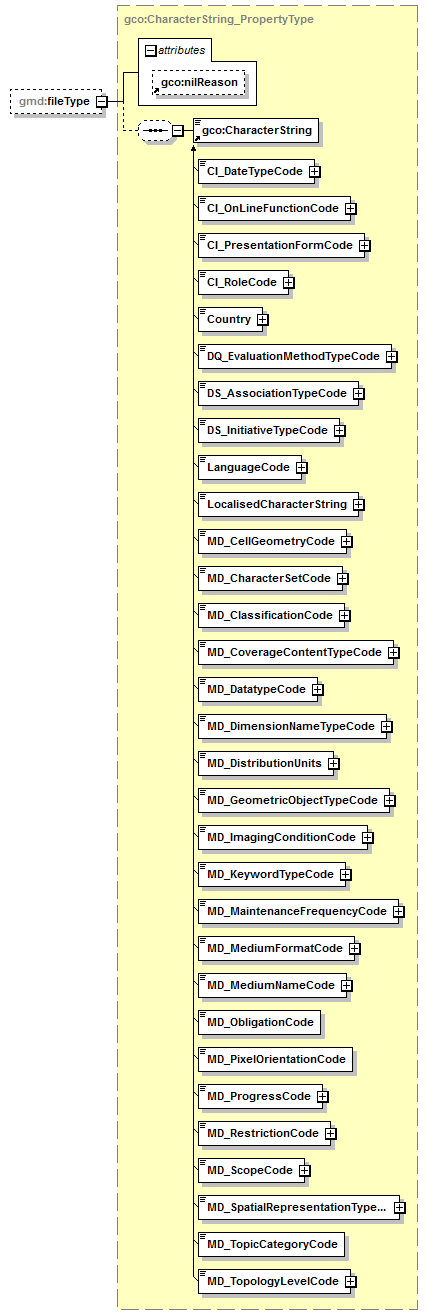

element MD_BrowseGraphic_Type/fileType

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="fileType" type="gco:CharacterString_PropertyType" minOccurs="0"/>
