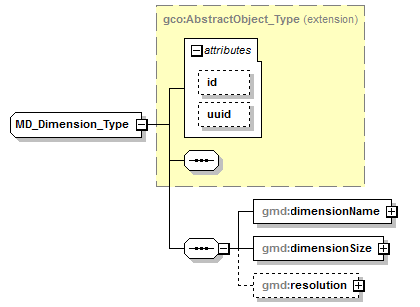

complexType MD_Dimension_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gco:AbstractObject_Type
properties	base  gco:AbstractObject_Type
children	gmd:dimensionName gmd:dimensionSize gmd:resolution
used by	element  MD_Dimension
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
source	<complexType name="MD_Dimension_Type">   <complexContent>     <extension base="gco:AbstractObject_Type">       <sequence>         <element name="dimensionName" type="gmd:MD_DimensionNameTypeCode_PropertyType"/>         <element name="dimensionSize" type="gco:Integer_PropertyType"/>         <element name="resolution" type="gco:Measure_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

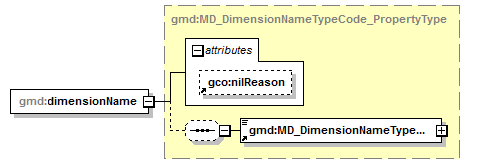

element MD_Dimension_Type/dimensionName

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_DimensionNameTypeCode_PropertyType
properties	isRef  0 content  complex
children	gmd:MD_DimensionNameTypeCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="dimensionName" type="gmd:MD_DimensionNameTypeCode_PropertyType"/>

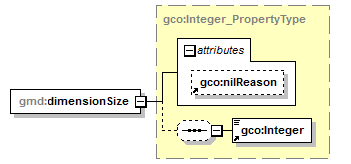

element MD_Dimension_Type/dimensionSize

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Integer_PropertyType
properties	isRef  0 content  complex
children	gco:Integer
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="dimensionSize" type="gco:Integer_PropertyType"/>

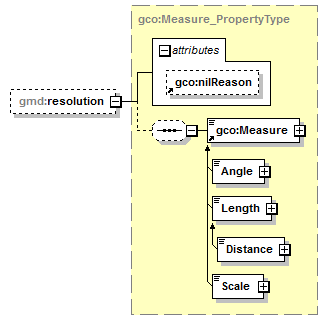

element MD_Dimension_Type/resolution

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Measure_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Measure
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="resolution" type="gco:Measure_PropertyType" minOccurs="0"/>
