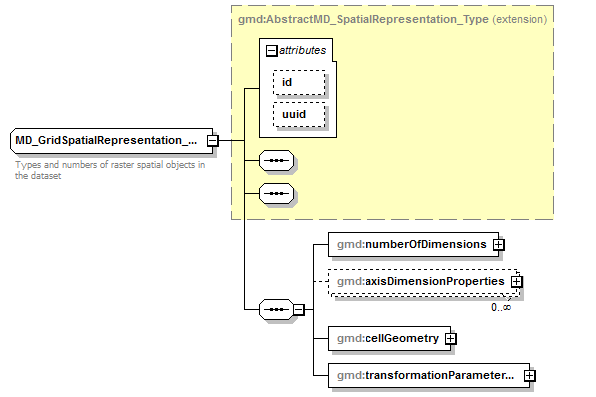

complexType MD_GridSpatialRepresentation_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:AbstractMD_SpatialRepresentation_Type
properties	base  gmd:AbstractMD_SpatialRepresentation_Type
children	gmd:numberOfDimensions gmd:axisDimensionProperties gmd:cellGeometry gmd:transformationParameterAvailability
used by	element  MD_GridSpatialRepresentation complexTypes  MD_Georectified_Type MD_Georeferenceable_Type
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Types and numbers of raster spatial objects in the dataset
source	<complexType name="MD_GridSpatialRepresentation_Type">   <annotation>     <documentation>Types and numbers of raster spatial objects in the dataset</documentation>   </annotation>   <complexContent>     <extension base="gmd:AbstractMD_SpatialRepresentation_Type">       <sequence>         <element name="numberOfDimensions" type="gco:Integer_PropertyType"/>         <element name="axisDimensionProperties" type="gmd:MD_Dimension_PropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element name="cellGeometry" type="gmd:MD_CellGeometryCode_PropertyType"/>         <element name="transformationParameterAvailability" type="gco:Boolean_PropertyType"/>       </sequence>     </extension>   </complexContent> </complexType>

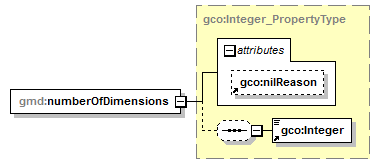

element MD_GridSpatialRepresentation_Type/numberOfDimensions

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Integer_PropertyType
properties	isRef  0 content  complex
children	gco:Integer
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="numberOfDimensions" type="gco:Integer_PropertyType"/>

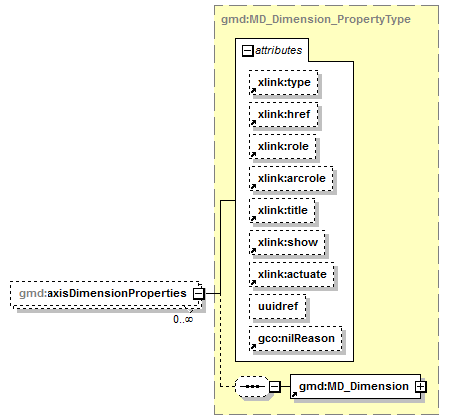

element MD_GridSpatialRepresentation_Type/axisDimensionProperties

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_Dimension_PropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gmd:MD_Dimension
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="axisDimensionProperties" type="gmd:MD_Dimension_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

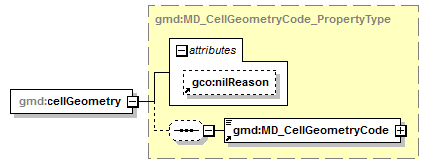

element MD_GridSpatialRepresentation_Type/cellGeometry

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_CellGeometryCode_PropertyType
properties	isRef  0 content  complex
children	gmd:MD_CellGeometryCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="cellGeometry" type="gmd:MD_CellGeometryCode_PropertyType"/>

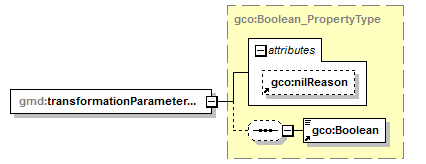

element MD_GridSpatialRepresentation_Type/transformationParameterAvailability

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="transformationParameterAvailability" type="gco:Boolean_PropertyType"/>
