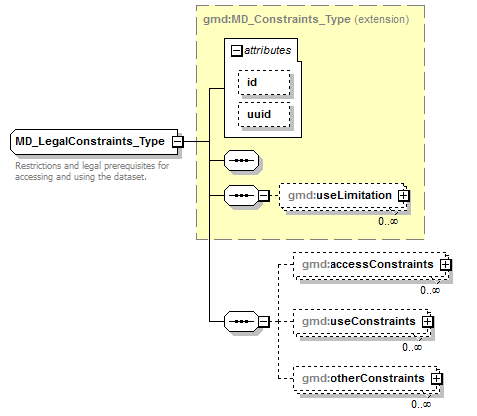

complexType MD_LegalConstraints_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:MD_Constraints_Type
properties	base  gmd:MD_Constraints_Type
children	gmd:useLimitation gmd:accessConstraints gmd:useConstraints gmd:otherConstraints
used by	element  MD_LegalConstraints
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Restrictions and legal prerequisites for accessing and using the dataset.
source	<complexType name="MD_LegalConstraints_Type">   <annotation>     <documentation>Restrictions and legal prerequisites for accessing and using the dataset.</documentation>   </annotation>   <complexContent>     <extension base="gmd:MD_Constraints_Type">       <sequence>         <element name="accessConstraints" type="gmd:MD_RestrictionCode_PropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element name="useConstraints" type="gmd:MD_RestrictionCode_PropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element name="otherConstraints" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

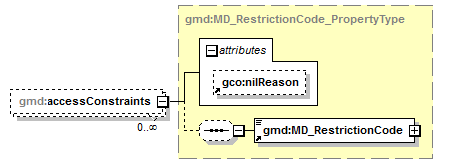

element MD_LegalConstraints_Type/accessConstraints

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_RestrictionCode_PropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gmd:MD_RestrictionCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="accessConstraints" type="gmd:MD_RestrictionCode_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

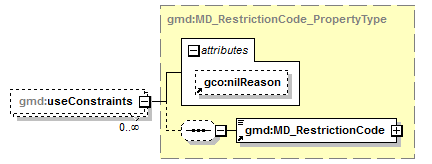

element MD_LegalConstraints_Type/useConstraints

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_RestrictionCode_PropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gmd:MD_RestrictionCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="useConstraints" type="gmd:MD_RestrictionCode_PropertyType" minOccurs="0" maxOccurs="unbounded"/>

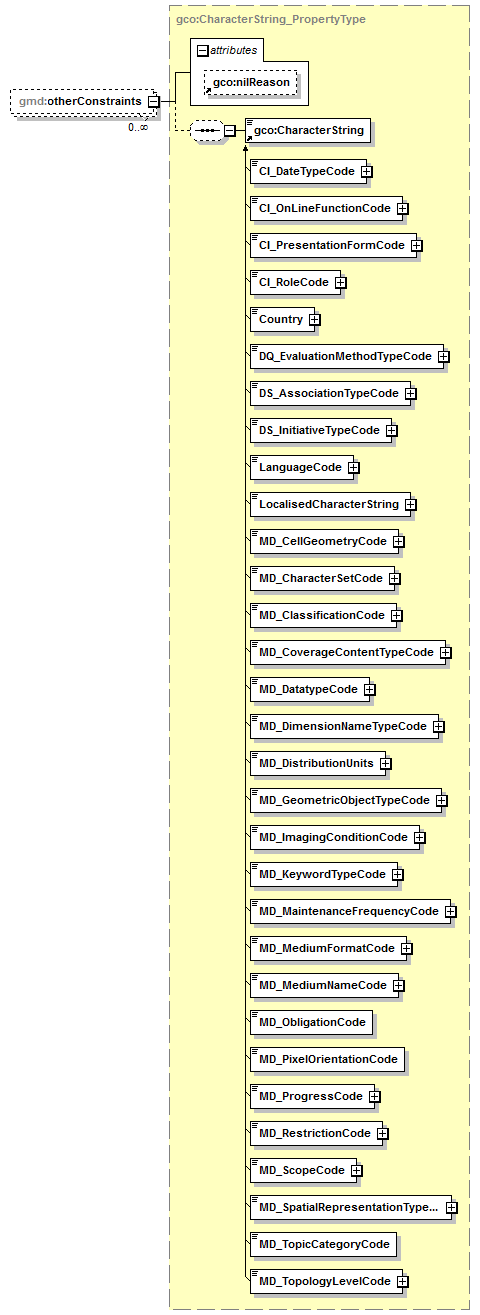

element MD_LegalConstraints_Type/otherConstraints

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="otherConstraints" type="gco:CharacterString_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
