complexType MD_SecurityConstraints_Type

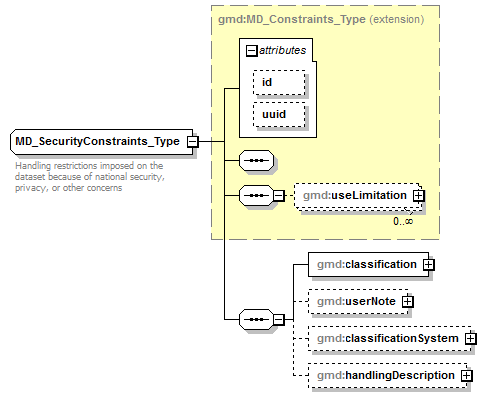

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:MD_Constraints_Type
properties	base  gmd:MD_Constraints_Type
children	gmd:useLimitation gmd:classification gmd:userNote gmd:classificationSystem gmd:handlingDescription
used by	element  MD_SecurityConstraints
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Handling restrictions imposed on the dataset because of national security, privacy, or other concerns
source	<complexType name="MD_SecurityConstraints_Type">   <annotation>     <documentation>Handling restrictions imposed on the dataset because of national security, privacy, or other concerns</documentation>   </annotation>   <complexContent>     <extension base="gmd:MD_Constraints_Type">       <sequence>         <element name="classification" type="gmd:MD_ClassificationCode_PropertyType"/>         <element name="userNote" type="gco:CharacterString_PropertyType" minOccurs="0"/>         <element name="classificationSystem" type="gco:CharacterString_PropertyType" minOccurs="0"/>         <element name="handlingDescription" type="gco:CharacterString_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

element MD_SecurityConstraints_Type/classification

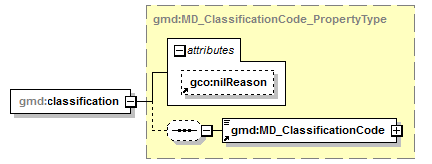

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_ClassificationCode_PropertyType
properties	isRef  0 content  complex
children	gmd:MD_ClassificationCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="classification" type="gmd:MD_ClassificationCode_PropertyType"/>

element MD_SecurityConstraints_Type/userNote

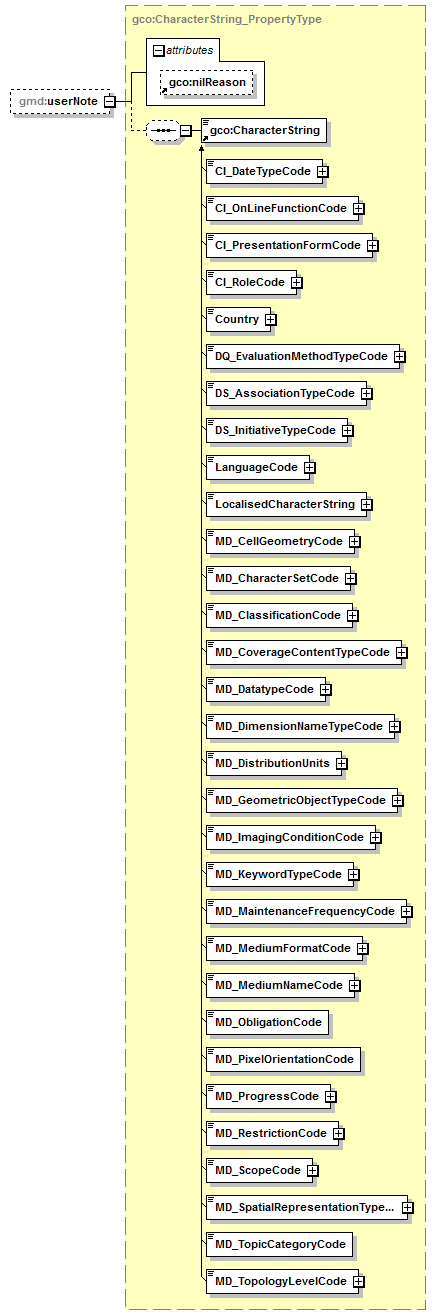

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="userNote" type="gco:CharacterString_PropertyType" minOccurs="0"/>

element MD_SecurityConstraints_Type/classificationSystem

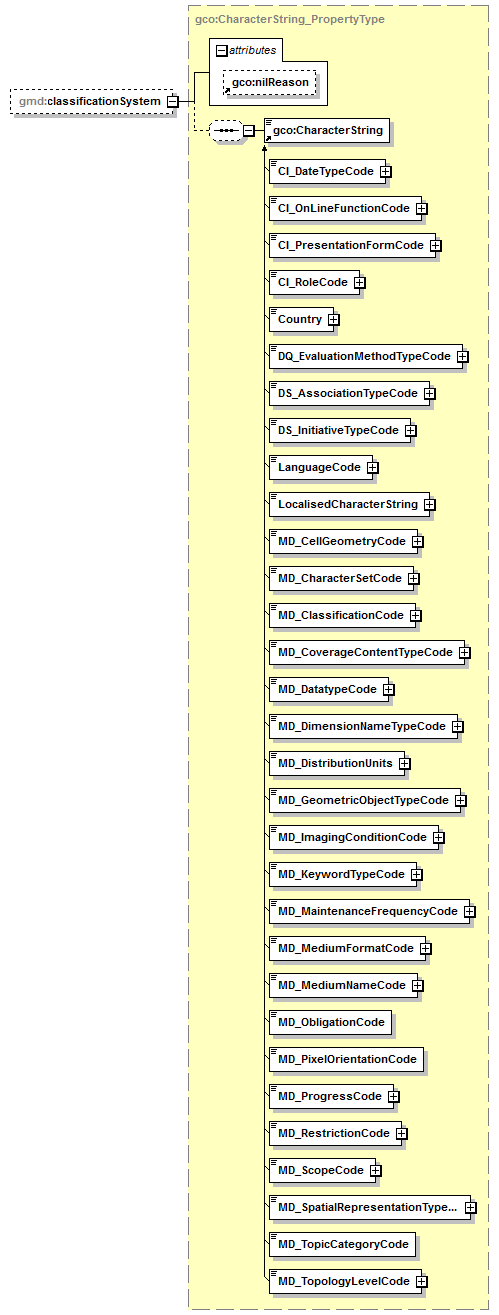

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="classificationSystem" type="gco:CharacterString_PropertyType" minOccurs="0"/>

element MD_SecurityConstraints_Type/handlingDescription

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:CharacterString_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:CharacterString
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="handlingDescription" type="gco:CharacterString_PropertyType" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
