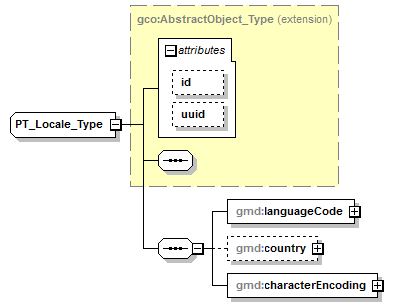

complexType PT_Locale_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gco:AbstractObject_Type
properties	base  gco:AbstractObject_Type
children	gmd:languageCode gmd:country gmd:characterEncoding
used by	element  PT_Locale
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
source	<complexType name="PT_Locale_Type">   <complexContent>     <extension base="gco:AbstractObject_Type">       <sequence>         <element name="languageCode" type="gmd:LanguageCode_PropertyType"/>         <element name="country" type="gmd:Country_PropertyType" minOccurs="0"/>         <element name="characterEncoding" type="gmd:MD_CharacterSetCode_PropertyType"/>       </sequence>     </extension>   </complexContent> </complexType>

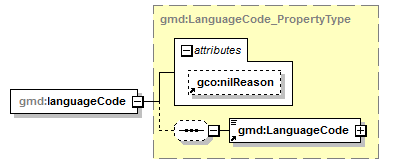

element PT_Locale_Type/languageCode

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:LanguageCode_PropertyType
properties	isRef  0 content  complex
children	gmd:LanguageCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="languageCode" type="gmd:LanguageCode_PropertyType"/>

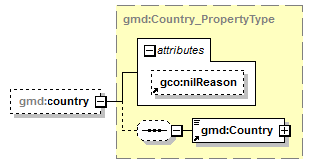

element PT_Locale_Type/country

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:Country_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:Country
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="country" type="gmd:Country_PropertyType" minOccurs="0"/>

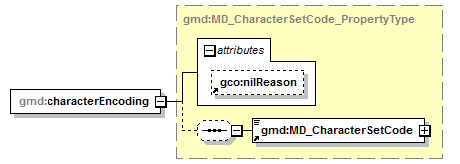

element PT_Locale_Type/characterEncoding

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_CharacterSetCode_PropertyType
properties	isRef  0 content  complex
children	gmd:MD_CharacterSetCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="characterEncoding" type="gmd:MD_CharacterSetCode_PropertyType"/>
