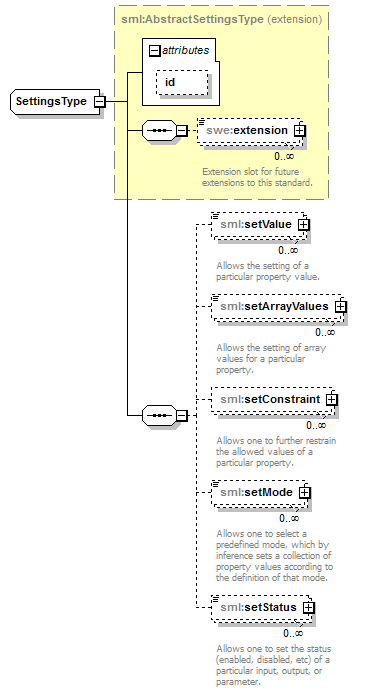

complexType SettingsType

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	extension of sml:AbstractSettingsType
properties	base  sml:AbstractSettingsType
children	swe:extension sml:setValue sml:setArrayValues sml:setConstraint sml:setMode sml:setStatus
used by	element  Settings
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional
source	<complexType name="SettingsType">   <complexContent>     <extension base="sml:AbstractSettingsType">       <sequence>         <element name="setValue" type="sml:ValueSettingPropertyType" minOccurs="0" maxOccurs="unbounded">           <annotation>             <documentation>Allows the setting of a particular property value.</documentation>           </annotation>         </element>         <element name="setArrayValues" type="sml:ValueSettingPropertyType" minOccurs="0" maxOccurs="unbounded">           <annotation>             <documentation>Allows the setting of array values for a particular property.</documentation>           </annotation>         </element>         <element name="setConstraint" type="sml:ConstraintSettingPropertyType" minOccurs="0" maxOccurs="unbounded">           <annotation>             <documentation>Allows one to further restrain the allowed values of a particular property.</documentation>           </annotation>         </element>         <element name="setMode" type="sml:ModeSettingPropertyType" minOccurs="0" maxOccurs="unbounded">           <annotation>             <documentation>Allows one to select a predefined mode, which by inference sets a collection of property values according to the definition of that mode.</documentation>           </annotation>         </element>         <element name="setStatus" type="sml:StatusSettingPropertyType" minOccurs="0" maxOccurs="unbounded">           <annotation>             <documentation>Allows one to set the status (enabled, disabled, etc) of a particular input, output, or parameter.</documentation>           </annotation>         </element>       </sequence>     </extension>   </complexContent> </complexType>

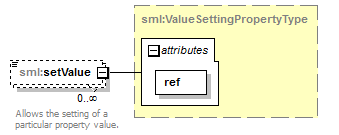

element SettingsType/setValue

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ValueSettingPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation ref sml:DataComponentPathType required
annotation	documentation Allows the setting of a particular property value.
source	<element name="setValue" type="sml:ValueSettingPropertyType" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Allows the setting of a particular property value.</documentation>   </annotation> </element>

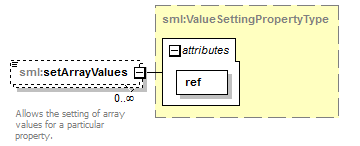

element SettingsType/setArrayValues

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ValueSettingPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation ref sml:DataComponentPathType required
annotation	documentation Allows the setting of array values for a particular property.
source	<element name="setArrayValues" type="sml:ValueSettingPropertyType" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Allows the setting of array values for a particular property.</documentation>   </annotation> </element>

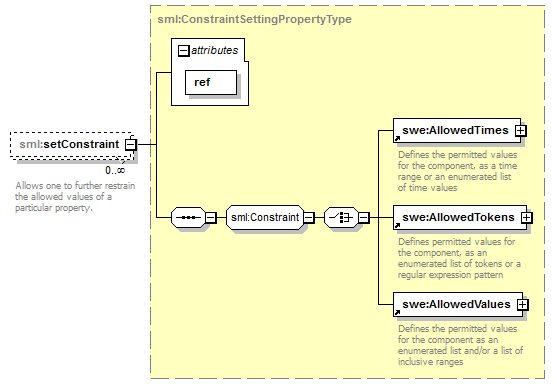

element SettingsType/setConstraint

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ConstraintSettingPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	swe:AllowedTimes swe:AllowedTokens swe:AllowedValues
attributes	Name   Type   Use   Default   Fixed   annotation ref sml:DataComponentPathType required
annotation	documentation Allows one to further restrain the allowed values of a particular property.
source	<element name="setConstraint" type="sml:ConstraintSettingPropertyType" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Allows one to further restrain the allowed values of a particular property.</documentation>   </annotation> </element>

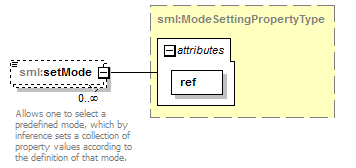

element SettingsType/setMode

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ModeSettingPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation ref sml:DataComponentPathType required
annotation	documentation Allows one to select a predefined mode, which by inference sets a collection of property values according to the definition of that mode.
source	<element name="setMode" type="sml:ModeSettingPropertyType" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Allows one to select a predefined mode, which by inference sets a collection of property values according to the definition of that mode.</documentation>   </annotation> </element>

element SettingsType/setStatus

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:StatusSettingPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
facets	Kind  Value  annotation  enumeration  enabled  enumeration  disabled
attributes	Name   Type   Use   Default   Fixed   annotation ref sml:DataComponentPathType required
annotation	documentation Allows one to set the status (enabled, disabled, etc) of a particular input, output, or parameter.
source	<element name="setStatus" type="sml:StatusSettingPropertyType" minOccurs="0" maxOccurs="unbounded">   <annotation>     <documentation>Allows one to set the status (enabled, disabled, etc) of a particular input, output, or parameter.</documentation>   </annotation> </element>
