complexType TinType

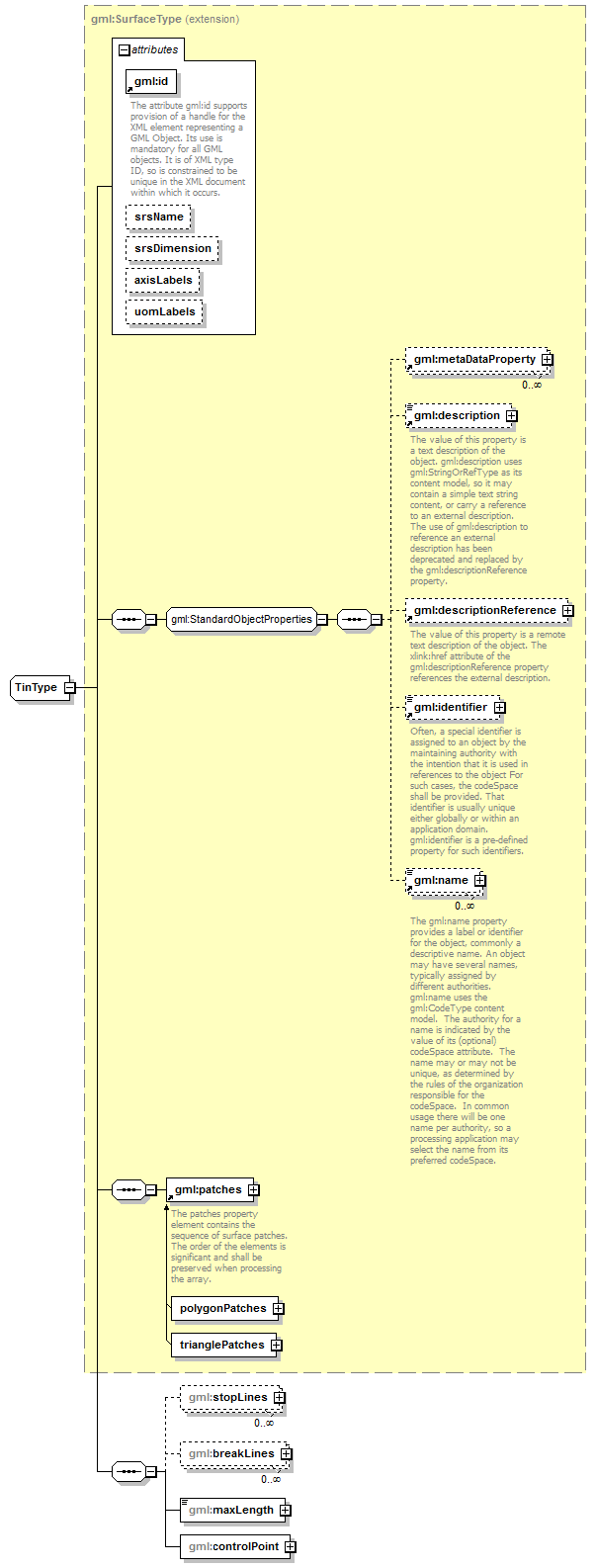

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:SurfaceType
properties	base  gml:SurfaceType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:patches gml:stopLines gml:breakLines gml:maxLength gml:controlPoint
used by	element  Tin
attributes	Name   Type   Use   Default   Fixed   annotation id ID required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList
source	<complexType name="TinType">   <complexContent>     <extension base="gml:SurfaceType">       <sequence>         <element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element name="maxLength" type="gml:LengthType"/>         <element name="controlPoint">           <complexType>             <choice>               <element ref="gml:posList"/>               <group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded"/>             </choice>           </complexType>         </element>       </sequence>     </extension>   </complexContent> </complexType>

element TinType/stopLines

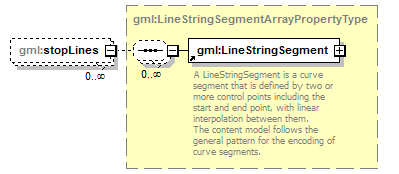

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:LineStringSegmentArrayPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:LineStringSegment
source	<element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>

element TinType/breakLines

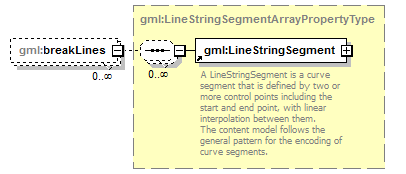

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:LineStringSegmentArrayPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:LineStringSegment
source	<element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded"/>

element TinType/maxLength

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
source	<element name="maxLength" type="gml:LengthType"/>

element TinType/controlPoint

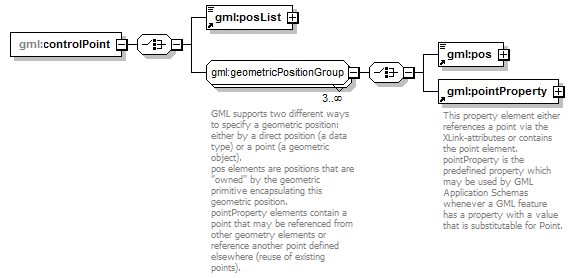

diagram
namespace	http://www.opengis.net/gml/3.2
properties	isRef  0 content  complex
children	gml:posList gml:pos gml:pointProperty
source	<element name="controlPoint">   <complexType>     <choice>       <element ref="gml:posList"/>       <group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded"/>     </choice>   </complexType> </element>
