element secondDefiningParameter

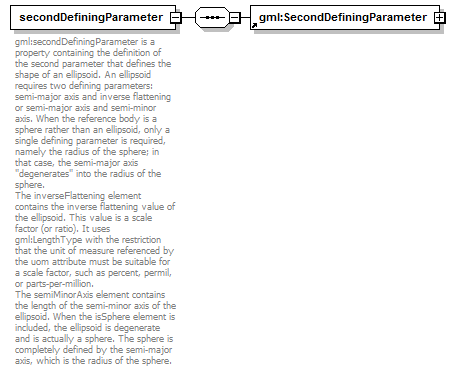

diagram
namespace	http://www.opengis.net/gml/3.2
properties	content  complex
children	gml:SecondDefiningParameter
used by	complexType  EllipsoidType
annotation	documentation gml:secondDefiningParameter is a property containing the definition of the second parameter that defines the shape of an ellipsoid. An ellipsoid requires two defining parameters: semi-major axis and inverse flattening or semi-major axis and semi-minor axis. When the reference body is a sphere rather than an ellipsoid, only a single defining parameter is required, namely the radius of the sphere; in that case, the semi-major axis "degenerates" into the radius of the sphere. The inverseFlattening element contains the inverse flattening value of the ellipsoid. This value is a scale factor (or ratio). It uses gml:LengthType with the restriction that the unit of measure referenced by the uom attribute must be suitable for a scale factor, such as percent, permil, or parts-per-million. The semiMinorAxis element contains the length of the semi-minor axis of the ellipsoid. When the isSphere element is included, the ellipsoid is degenerate and is actually a sphere. The sphere is completely defined by the semi-major axis, which is the radius of the sphere.
source	<element name="secondDefiningParameter">   <annotation>     <documentation>gml:secondDefiningParameter is a property containing the definition of the second parameter that defines the shape of an ellipsoid. An ellipsoid requires two defining parameters: semi-major axis and inverse flattening or semi-major axis and semi-minor axis. When the reference body is a sphere rather than an ellipsoid, only a single defining parameter is required, namely the radius of the sphere; in that case, the semi-major axis "degenerates" into the radius of the sphere. The inverseFlattening element contains the inverse flattening value of the ellipsoid. This value is a scale factor (or ratio). It uses gml:LengthType with the restriction that the unit of measure referenced by the uom attribute must be suitable for a scale factor, such as percent, permil, or parts-per-million. The semiMinorAxis element contains the length of the semi-minor axis of the ellipsoid. When the isSphere element is included, the ellipsoid is degenerate and is actually a sphere. The sphere is completely defined by the semi-major axis, which is the radius of the sphere.</documentation>   </annotation>   <complexType>     <sequence>       <element ref="gml:SecondDefiningParameter"/>     </sequence>   </complexType> </element>
