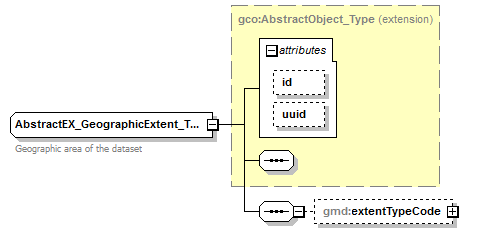

complexType AbstractEX_GeographicExtent_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gco:AbstractObject_Type
properties	base  gco:AbstractObject_Type abstract  true
children	gmd:extentTypeCode
used by	element  AbstractEX_GeographicExtent complexTypes  EX_BoundingPolygon_Type EX_GeographicBoundingBox_Type EX_GeographicDescription_Type
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Geographic area of the dataset
source	<complexType name="AbstractEX_GeographicExtent_Type" abstract="true">   <annotation>     <documentation>Geographic area of the dataset</documentation>   </annotation>   <complexContent>     <extension base="gco:AbstractObject_Type">       <sequence>         <element name="extentTypeCode" type="gco:Boolean_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

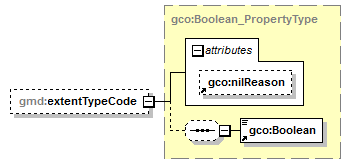

element AbstractEX_GeographicExtent_Type/extentTypeCode

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="extentTypeCode" type="gco:Boolean_PropertyType" minOccurs="0"/>
