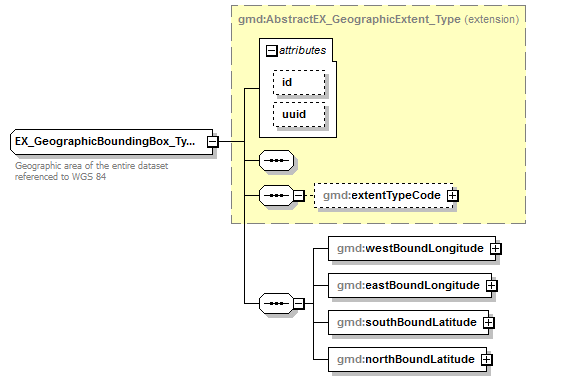

complexType EX_GeographicBoundingBox_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:AbstractEX_GeographicExtent_Type
properties	base  gmd:AbstractEX_GeographicExtent_Type
children	gmd:extentTypeCode gmd:westBoundLongitude gmd:eastBoundLongitude gmd:southBoundLatitude gmd:northBoundLatitude
used by	element  EX_GeographicBoundingBox
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Geographic area of the entire dataset referenced to WGS 84
source	<complexType name="EX_GeographicBoundingBox_Type">   <annotation>     <documentation>Geographic area of the entire dataset referenced to WGS 84</documentation>   </annotation>   <complexContent>     <extension base="gmd:AbstractEX_GeographicExtent_Type">       <sequence>         <element name="westBoundLongitude" type="gco:Decimal_PropertyType"/>         <element name="eastBoundLongitude" type="gco:Decimal_PropertyType"/>         <element name="southBoundLatitude" type="gco:Decimal_PropertyType"/>         <element name="northBoundLatitude" type="gco:Decimal_PropertyType"/>       </sequence>     </extension>   </complexContent> </complexType>

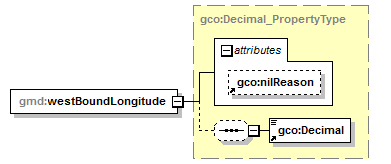

element EX_GeographicBoundingBox_Type/westBoundLongitude

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Decimal_PropertyType
properties	isRef  0 content  complex
children	gco:Decimal
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="westBoundLongitude" type="gco:Decimal_PropertyType"/>

element EX_GeographicBoundingBox_Type/eastBoundLongitude

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Decimal_PropertyType
properties	isRef  0 content  complex
children	gco:Decimal
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="eastBoundLongitude" type="gco:Decimal_PropertyType"/>

element EX_GeographicBoundingBox_Type/southBoundLatitude

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Decimal_PropertyType
properties	isRef  0 content  complex
children	gco:Decimal
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="southBoundLatitude" type="gco:Decimal_PropertyType"/>

element EX_GeographicBoundingBox_Type/northBoundLatitude

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Decimal_PropertyType
properties	isRef  0 content  complex
children	gco:Decimal
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="northBoundLatitude" type="gco:Decimal_PropertyType"/>
