complexType AggregateProcessType

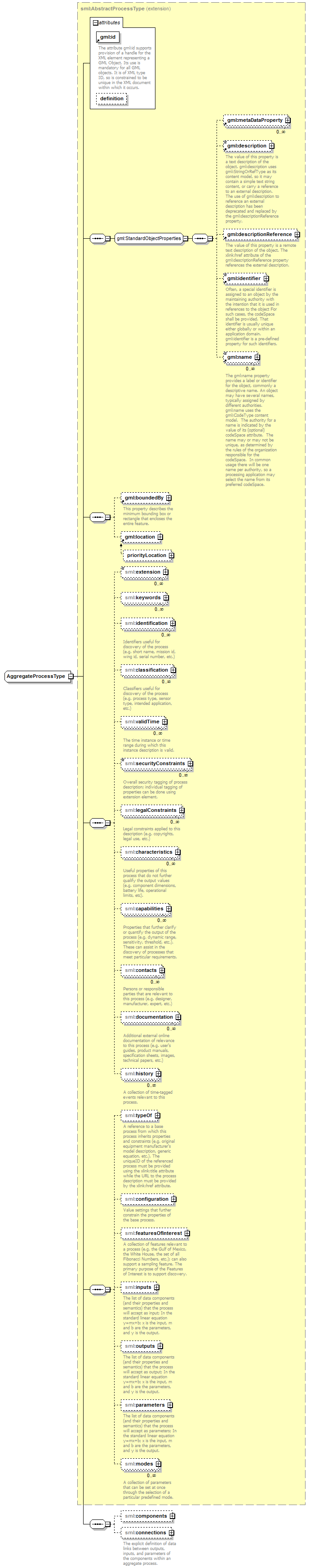

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	extension of sml:AbstractProcessType
properties	base  sml:AbstractProcessType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location sml:extension sml:keywords sml:identification sml:classification sml:validTime sml:securityConstraints sml:legalConstraints sml:characteristics sml:capabilities sml:contacts sml:documentation sml:history sml:typeOf sml:configuration sml:featuresOfInterest sml:inputs sml:outputs sml:parameters sml:modes sml:components sml:connections
used by	element  AggregateProcess
attributes	Name   Type   Use   Default   Fixed   annotation id ID required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. definition anyURI
source	<complexType name="AggregateProcessType">   <complexContent>     <extension base="sml:AbstractProcessType">       <sequence>         <element name="components" type="sml:ComponentListPropertyType" minOccurs="0" maxOccurs="1"/>         <element name="connections" type="sml:ConnectionListPropertyType" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>The explicit definition of data links between outputs, inputs, and parameters of the components within an aggregate process.</documentation>           </annotation>         </element>       </sequence>     </extension>   </complexContent> </complexType>

element AggregateProcessType/components

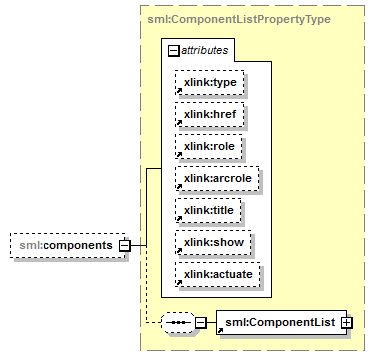

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ComponentListPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	sml:ComponentList
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
source	<element name="components" type="sml:ComponentListPropertyType" minOccurs="0" maxOccurs="1"/>

element AggregateProcessType/connections

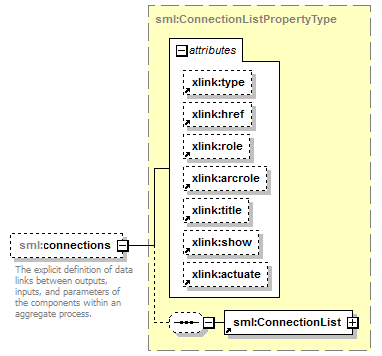

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ConnectionListPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	sml:ConnectionList
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation The explicit definition of data links between outputs, inputs, and parameters of the components within an aggregate process.
source	<element name="connections" type="sml:ConnectionListPropertyType" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>The explicit definition of data links between outputs, inputs, and parameters of the components within an aggregate process.</documentation>   </annotation> </element>
