complexType ArcByBulgeType

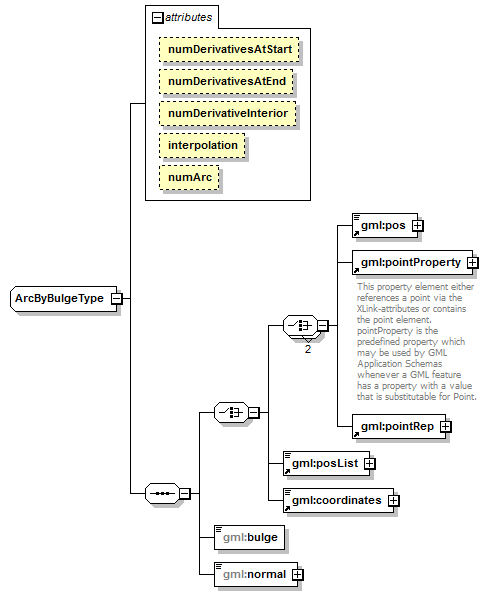

diagram
namespace	http://www.opengis.net/gml/3.2
type	restriction of gml:ArcStringByBulgeType
properties	base  gml:ArcStringByBulgeType
children	gml:pos gml:pointProperty gml:pointRep gml:posList gml:coordinates gml:bulge gml:normal
used by	element  ArcByBulge
attributes	Name   Type   Use   Default   Fixed   annotation numDerivativesAtStart integer    0      numDerivativesAtEnd integer    0      numDerivativeInterior integer    0      interpolation gml:CurveInterpolationType       circularArc2PointWithBulge   numArc integer       1
source	<complexType name="ArcByBulgeType">   <complexContent>     <restriction base="gml:ArcStringByBulgeType">       <sequence>         <choice>           <choice minOccurs="2" maxOccurs="2">             <element ref="gml:pos"/>             <element ref="gml:pointProperty"/>             <element ref="gml:pointRep"/>           </choice>           <element ref="gml:posList"/>           <element ref="gml:coordinates"/>         </choice>         <element name="bulge" type="double"/>         <element name="normal" type="gml:VectorType"/>       </sequence>       <attribute name="numArc" type="integer" fixed="1"/>     </restriction>   </complexContent> </complexType>

attribute ArcByBulgeType/@numArc

type	integer
properties	isRef  0 fixed  1
source	<attribute name="numArc" type="integer" fixed="1"/>

element ArcByBulgeType/bulge

diagram
namespace	http://www.opengis.net/gml/3.2
type	double
properties	isRef  0 content  simple
source	<element name="bulge" type="double"/>

element ArcByBulgeType/normal

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:VectorType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList
source	<element name="normal" type="gml:VectorType"/>
