complexType ArcStringByBulgeType

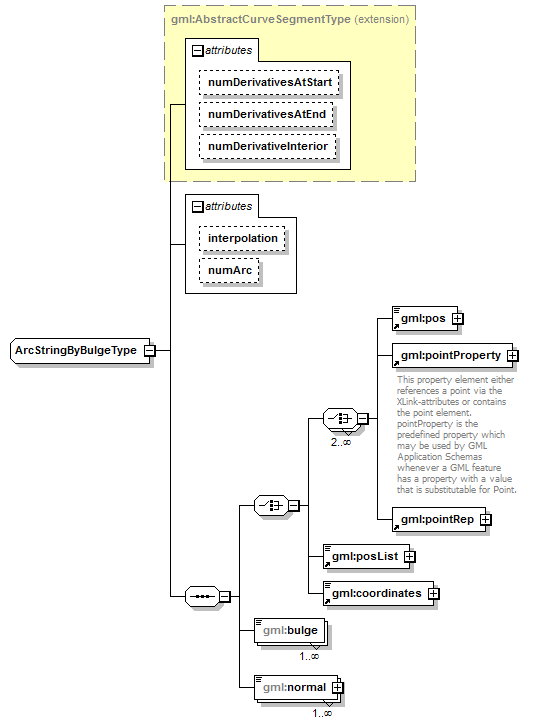

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractCurveSegmentType
properties	base  gml:AbstractCurveSegmentType
children	gml:pos gml:pointProperty gml:pointRep gml:posList gml:coordinates gml:bulge gml:normal
used by	element  ArcStringByBulge complexType  ArcByBulgeType
attributes	Name   Type   Use   Default   Fixed   annotation numDerivativesAtStart integer    0      numDerivativesAtEnd integer    0      numDerivativeInterior integer    0      interpolation gml:CurveInterpolationType       circularArc2PointWithBulge   numArc integer
source	<complexType name="ArcStringByBulgeType">   <complexContent>     <extension base="gml:AbstractCurveSegmentType">       <sequence>         <choice>           <choice minOccurs="2" maxOccurs="unbounded">             <element ref="gml:pos"/>             <element ref="gml:pointProperty"/>             <element ref="gml:pointRep"/>           </choice>           <element ref="gml:posList"/>           <element ref="gml:coordinates"/>         </choice>         <element name="bulge" type="double" maxOccurs="unbounded"/>         <element name="normal" type="gml:VectorType" maxOccurs="unbounded"/>       </sequence>       <attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArc2PointWithBulge"/>       <attribute name="numArc" type="integer"/>     </extension>   </complexContent> </complexType>

attribute ArcStringByBulgeType/@interpolation

type	gml:CurveInterpolationType
properties	isRef  0 fixed  circularArc2PointWithBulge
facets	Kind  Value  annotation  enumeration  linear  enumeration  geodesic  enumeration  circularArc3Points  enumeration  circularArc2PointWithBulge  enumeration  circularArcCenterPointWithRadius  enumeration  elliptical  enumeration  clothoid  enumeration  conic  enumeration  polynomialSpline  enumeration  cubicSpline  enumeration  rationalSpline
source	<attribute name="interpolation" type="gml:CurveInterpolationType" fixed="circularArc2PointWithBulge"/>

attribute ArcStringByBulgeType/@numArc

type	integer
properties	isRef  0
source	<attribute name="numArc" type="integer"/>

element ArcStringByBulgeType/bulge

diagram
namespace	http://www.opengis.net/gml/3.2
type	double
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
source	<element name="bulge" type="double" maxOccurs="unbounded"/>

element ArcStringByBulgeType/normal

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:VectorType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList
source	<element name="normal" type="gml:VectorType" maxOccurs="unbounded"/>
