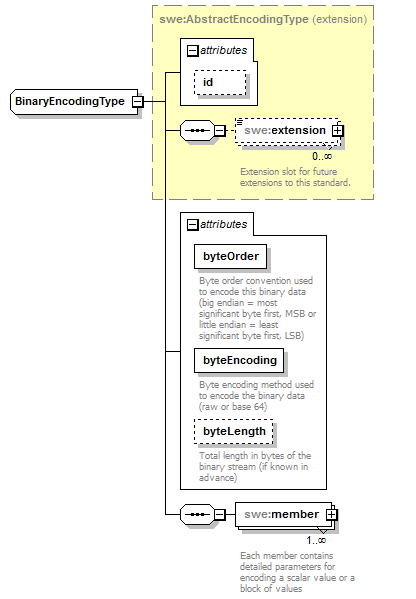

complexType BinaryEncodingType

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractEncodingType
properties	base  swe:AbstractEncodingType
children	swe:extension swe:member
used by	element  BinaryEncoding
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         byteOrder swe:ByteOrderType required         documentation Byte order convention used to encode this binary data (big endian = most significant byte first, MSB or little endian = least significant byte first, LSB) byteEncoding swe:ByteEncodingType required         documentation Byte encoding method used to encode the binary data (raw or base 64) byteLength integer optional         documentation Total length in bytes of the binary stream (if known in advance)
source	<complexType name="BinaryEncodingType">   <complexContent>     <extension base="swe:AbstractEncodingType">       <sequence>         <element name="member" minOccurs="1" maxOccurs="unbounded">           <annotation>             <documentation>Each member contains detailed parameters for encoding a scalar value or a block of values</documentation>           </annotation>           <complexType>             <sequence>               <group ref="swe:ComponentOrBlock"/>             </sequence>           </complexType>         </element>       </sequence>       <attribute name="byteOrder" type="swe:ByteOrderType" use="required">         <annotation>           <documentation>Byte order convention used to encode this binary data (big endian = most significant byte first, MSB or little endian = least significant byte first, LSB)</documentation>         </annotation>       </attribute>       <attribute name="byteEncoding" type="swe:ByteEncodingType" use="required">         <annotation>           <documentation>Byte encoding method used to encode the binary data (raw or base 64)</documentation>         </annotation>       </attribute>       <attribute name="byteLength" type="integer" use="optional">         <annotation>           <documentation>Total length in bytes of the binary stream (if known in advance)</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute BinaryEncodingType/@byteOrder

type	swe:ByteOrderType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  bigEndian  enumeration  littleEndian
annotation	documentation Byte order convention used to encode this binary data (big endian = most significant byte first, MSB or little endian = least significant byte first, LSB)
source	<attribute name="byteOrder" type="swe:ByteOrderType" use="required">   <annotation>     <documentation>Byte order convention used to encode this binary data (big endian = most significant byte first, MSB or little endian = least significant byte first, LSB)</documentation>   </annotation> </attribute>

attribute BinaryEncodingType/@byteEncoding

type	swe:ByteEncodingType
properties	isRef  0 use  required
facets	Kind  Value  annotation  enumeration  base64  enumeration  raw
annotation	documentation Byte encoding method used to encode the binary data (raw or base 64)
source	<attribute name="byteEncoding" type="swe:ByteEncodingType" use="required">   <annotation>     <documentation>Byte encoding method used to encode the binary data (raw or base 64)</documentation>   </annotation> </attribute>

attribute BinaryEncodingType/@byteLength

type	integer
properties	isRef  0 use  optional
annotation	documentation Total length in bytes of the binary stream (if known in advance)
source	<attribute name="byteLength" type="integer" use="optional">   <annotation>     <documentation>Total length in bytes of the binary stream (if known in advance)</documentation>   </annotation> </attribute>

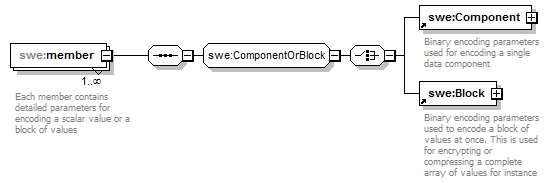

element BinaryEncodingType/member

diagram
namespace	http://www.opengis.net/swe/2.0
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	swe:Component swe:Block
annotation	documentation Each member contains detailed parameters for encoding a scalar value or a block of values
source	<element name="member" minOccurs="1" maxOccurs="unbounded">   <annotation>     <documentation>Each member contains detailed parameters for encoding a scalar value or a block of values</documentation>   </annotation>   <complexType>     <sequence>       <group ref="swe:ComponentOrBlock"/>     </sequence>   </complexType> </element>
