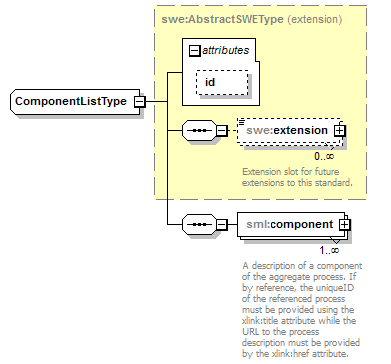

complexType ComponentListType

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	extension of swe:AbstractSWEType
properties	base  swe:AbstractSWEType
children	swe:extension sml:component
used by	element  ComponentList
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional
source	<complexType name="ComponentListType">   <complexContent>     <extension base="swe:AbstractSWEType">       <sequence>         <element name="component" minOccurs="1" maxOccurs="unbounded">           <annotation>             <documentation>A description of a component of the aggregate process. If by reference, the uniqueID of the referenced process must be provided using the xlink:title attribute while the URL to the process description must be provided by the xlink:href attribute.</documentation>           </annotation>           <complexType>             <complexContent>               <extension base="sml:AbstractProcessPropertyType">                 <attribute name="name" type="NCName" use="required"/>               </extension>             </complexContent>           </complexType>         </element>       </sequence>     </extension>   </complexContent> </complexType>

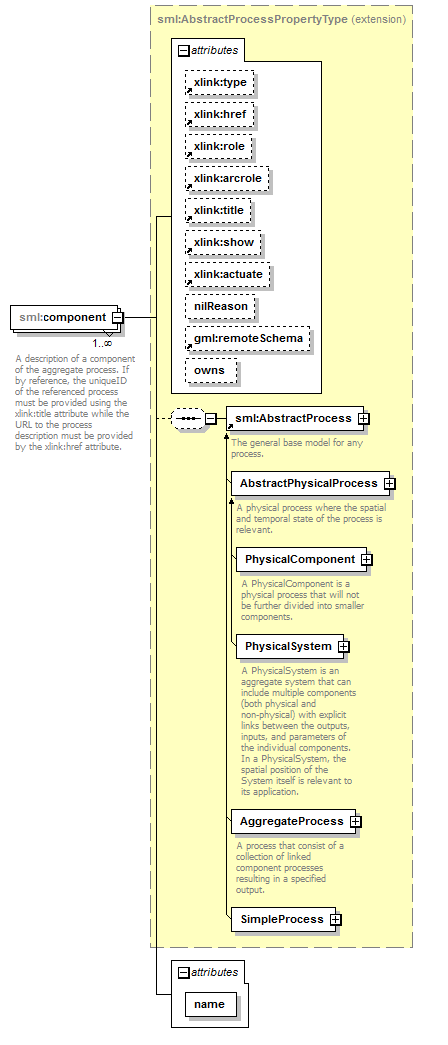

element ComponentListType/component

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	extension of sml:AbstractProcessPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	sml:AbstractProcess
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          nilReason gml:NilReasonType          remoteSchema anyURI          appinfo deprecated owns boolean    false      name NCName required
annotation	documentation A description of a component of the aggregate process. If by reference, the uniqueID of the referenced process must be provided using the xlink:title attribute while the URL to the process description must be provided by the xlink:href attribute.
source	<element name="component" minOccurs="1" maxOccurs="unbounded">   <annotation>     <documentation>A description of a component of the aggregate process. If by reference, the uniqueID of the referenced process must be provided using the xlink:title attribute while the URL to the process description must be provided by the xlink:href attribute.</documentation>   </annotation>   <complexType>     <complexContent>       <extension base="sml:AbstractProcessPropertyType">         <attribute name="name" type="NCName" use="required"/>       </extension>     </complexContent>   </complexType> </element>

attribute ComponentListType/component/@name

type	NCName
properties	isRef  0 use  required
source	<attribute name="name" type="NCName" use="required"/>
