complexType ConversionToPreferredUnitType

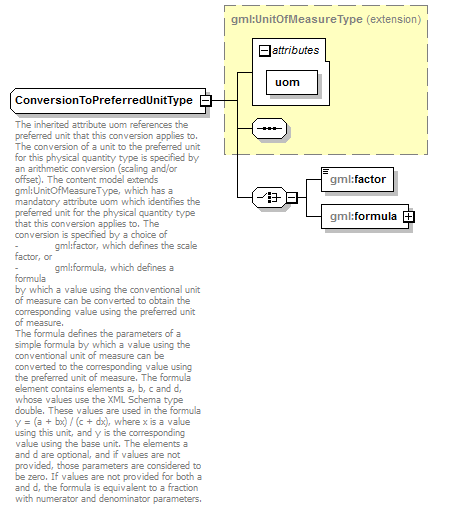

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:UnitOfMeasureType
properties	base  gml:UnitOfMeasureType
children	gml:factor gml:formula
used by	elements  conversionToPreferredUnit roughConversionToPreferredUnit
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
annotation	documentation The inherited attribute uom references the preferred unit that this conversion applies to. The conversion of a unit to the preferred unit for this physical quantity type is specified by an arithmetic conversion (scaling and/or offset). The content model extends gml:UnitOfMeasureType, which has a mandatory attribute uom which identifies the preferred unit for the physical quantity type that this conversion applies to. The conversion is specified by a choice of - gml:factor, which defines the scale factor, or - gml:formula, which defines a formula by which a value using the conventional unit of measure can be converted to obtain the corresponding value using the preferred unit of measure.  The formula defines the parameters of a simple formula by which a value using the conventional unit of measure can be converted to the corresponding value using the preferred unit of measure. The formula element contains elements a, b, c and d, whose values use the XML Schema type double. These values are used in the formula y = (a + bx) / (c + dx), where x is a value using this unit, and y is the corresponding value using the base unit. The elements a and d are optional, and if values are not provided, those parameters are considered to be zero. If values are not provided for both a and d, the formula is equivalent to a fraction with numerator and denominator parameters.
source	<complexType name="ConversionToPreferredUnitType">   <annotation>     <documentation>The inherited attribute uom references the preferred unit that this conversion applies to. The conversion of a unit to the preferred unit for this physical quantity type is specified by an arithmetic conversion (scaling and/or offset). The content model extends gml:UnitOfMeasureType, which has a mandatory attribute uom which identifies the preferred unit for the physical quantity type that this conversion applies to. The conversion is specified by a choice of - gml:factor, which defines the scale factor, or - gml:formula, which defines a formula by which a value using the conventional unit of measure can be converted to obtain the corresponding value using the preferred unit of measure.  The formula defines the parameters of a simple formula by which a value using the conventional unit of measure can be converted to the corresponding value using the preferred unit of measure. The formula element contains elements a, b, c and d, whose values use the XML Schema type double. These values are used in the formula y = (a + bx) / (c + dx), where x is a value using this unit, and y is the corresponding value using the base unit. The elements a and d are optional, and if values are not provided, those parameters are considered to be zero. If values are not provided for both a and d, the formula is equivalent to a fraction with numerator and denominator parameters.</documentation>   </annotation>   <complexContent>     <extension base="gml:UnitOfMeasureType">       <choice>         <element name="factor" type="double"/>         <element name="formula" type="gml:FormulaType"/>       </choice>     </extension>   </complexContent> </complexType>

element ConversionToPreferredUnitType/factor

diagram
namespace	http://www.opengis.net/gml/3.2
type	double
properties	isRef  0 content  simple
source	<element name="factor" type="double"/>

element ConversionToPreferredUnitType/formula

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:FormulaType
properties	isRef  0 content  complex
children	gml:a gml:b gml:c gml:d
used by	complexType  OperationMethodType
source	<element name="formula" type="gml:FormulaType"/>
