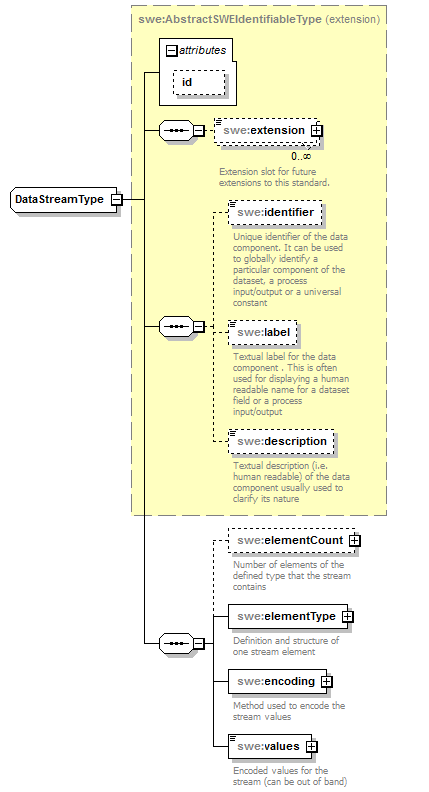

complexType DataStreamType

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractSWEIdentifiableType
properties	base  swe:AbstractSWEIdentifiableType
children	swe:extension swe:identifier swe:label swe:description swe:elementCount swe:elementType swe:encoding swe:values
used by	element  DataStream
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional
source	<complexType name="DataStreamType">   <complexContent>     <extension base="swe:AbstractSWEIdentifiableType">       <sequence>         <element name="elementCount" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>Number of elements of the defined type that the stream contains</documentation>           </annotation>           <complexType>             <sequence>               <element ref="swe:Count"/>             </sequence>           </complexType>         </element>         <element name="elementType">           <annotation>             <documentation>Definition and structure of one stream element</documentation>           </annotation>           <complexType>             <complexContent>               <extension base="swe:AbstractDataComponentPropertyType">                 <attribute name="name" type="NCName" use="required"/>               </extension>             </complexContent>           </complexType>         </element>         <element name="encoding">           <annotation>             <documentation>Method used to encode the stream values</documentation>           </annotation>           <complexType>             <sequence>               <element ref="swe:AbstractEncoding"/>             </sequence>           </complexType>         </element>         <element name="values" type="swe:EncodedValuesPropertyType">           <annotation>             <documentation>Encoded values for the stream (can be out of band)</documentation>           </annotation>         </element>       </sequence>     </extension>   </complexContent> </complexType>

element DataStreamType/elementCount

diagram
namespace	http://www.opengis.net/swe/2.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	swe:Count
annotation	documentation Number of elements of the defined type that the stream contains
source	<element name="elementCount" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>Number of elements of the defined type that the stream contains</documentation>   </annotation>   <complexType>     <sequence>       <element ref="swe:Count"/>     </sequence>   </complexType> </element>

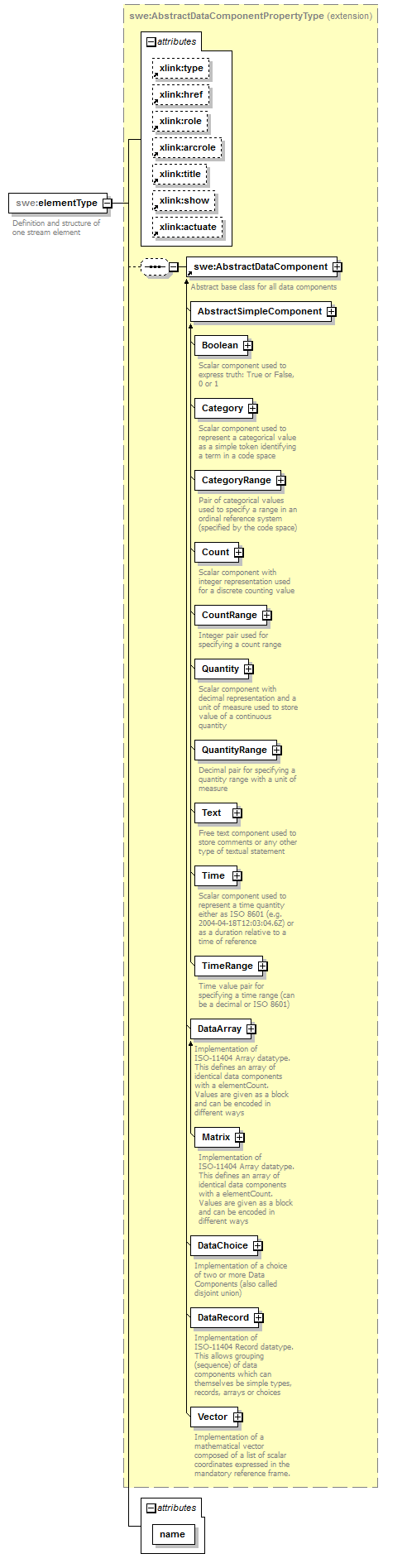

element DataStreamType/elementType

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentPropertyType
properties	isRef  0 content  complex
children	swe:AbstractDataComponent
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          name NCName required
annotation	documentation Definition and structure of one stream element
source	<element name="elementType">   <annotation>     <documentation>Definition and structure of one stream element</documentation>   </annotation>   <complexType>     <complexContent>       <extension base="swe:AbstractDataComponentPropertyType">         <attribute name="name" type="NCName" use="required"/>       </extension>     </complexContent>   </complexType> </element>

attribute DataStreamType/elementType/@name

type	NCName
properties	isRef  0 use  required
source	<attribute name="name" type="NCName" use="required"/>

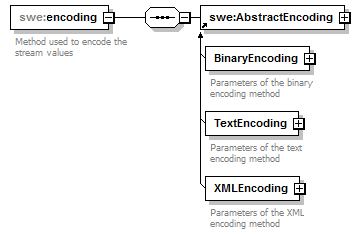

element DataStreamType/encoding

diagram
namespace	http://www.opengis.net/swe/2.0
properties	isRef  0 content  complex
children	swe:AbstractEncoding
annotation	documentation Method used to encode the stream values
source	<element name="encoding">   <annotation>     <documentation>Method used to encode the stream values</documentation>   </annotation>   <complexType>     <sequence>       <element ref="swe:AbstractEncoding"/>     </sequence>   </complexType> </element>

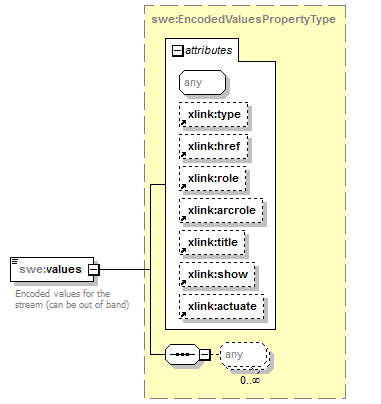

element DataStreamType/values

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:EncodedValuesPropertyType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation Encoded values for the stream (can be out of band)
source	<element name="values" type="swe:EncodedValuesPropertyType">   <annotation>     <documentation>Encoded values for the stream (can be out of band)</documentation>   </annotation> </element>
