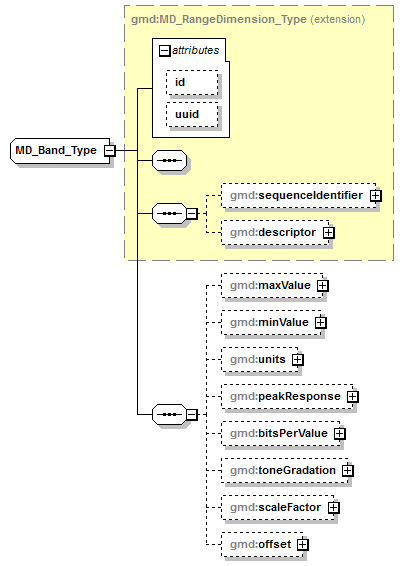

complexType MD_Band_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:MD_RangeDimension_Type
properties	base  gmd:MD_RangeDimension_Type
children	gmd:sequenceIdentifier gmd:descriptor gmd:maxValue gmd:minValue gmd:units gmd:peakResponse gmd:bitsPerValue gmd:toneGradation gmd:scaleFactor gmd:offset
used by	element  MD_Band
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
source	<complexType name="MD_Band_Type">   <complexContent>     <extension base="gmd:MD_RangeDimension_Type">       <sequence>         <element name="maxValue" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="minValue" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="units" type="gco:UomLength_PropertyType" minOccurs="0"/>         <element name="peakResponse" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="bitsPerValue" type="gco:Integer_PropertyType" minOccurs="0"/>         <element name="toneGradation" type="gco:Integer_PropertyType" minOccurs="0"/>         <element name="scaleFactor" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="offset" type="gco:Real_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

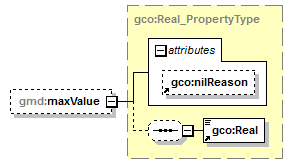

element MD_Band_Type/maxValue

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="maxValue" type="gco:Real_PropertyType" minOccurs="0"/>

element MD_Band_Type/minValue

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="minValue" type="gco:Real_PropertyType" minOccurs="0"/>

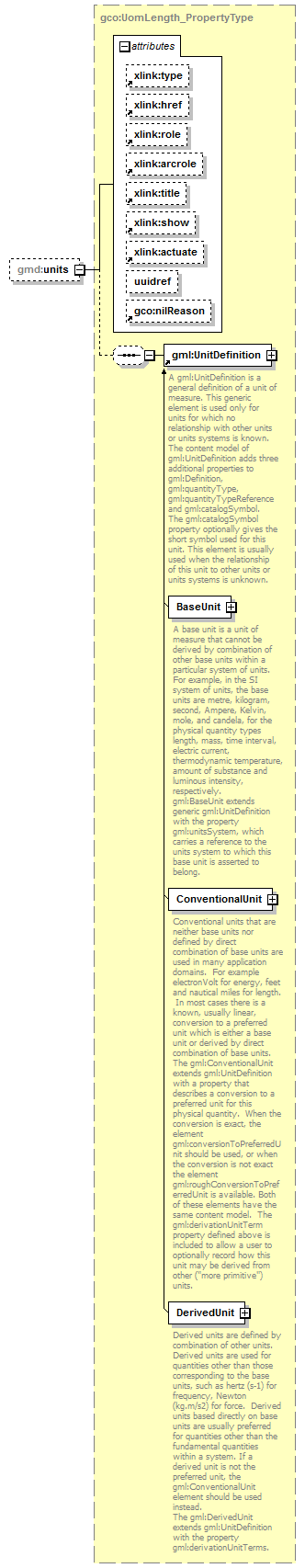

element MD_Band_Type/units

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:UomLength_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gml:UnitDefinition
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="units" type="gco:UomLength_PropertyType" minOccurs="0"/>

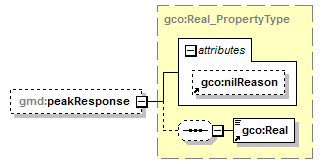

element MD_Band_Type/peakResponse

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="peakResponse" type="gco:Real_PropertyType" minOccurs="0"/>

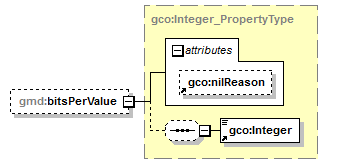

element MD_Band_Type/bitsPerValue

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Integer_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Integer
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="bitsPerValue" type="gco:Integer_PropertyType" minOccurs="0"/>

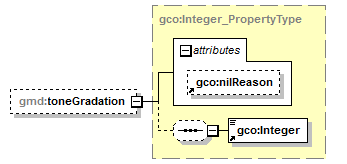

element MD_Band_Type/toneGradation

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Integer_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Integer
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="toneGradation" type="gco:Integer_PropertyType" minOccurs="0"/>

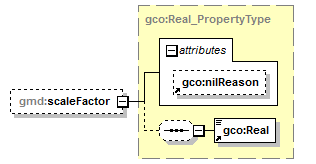

element MD_Band_Type/scaleFactor

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="scaleFactor" type="gco:Real_PropertyType" minOccurs="0"/>

element MD_Band_Type/offset

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="offset" type="gco:Real_PropertyType" minOccurs="0"/>
