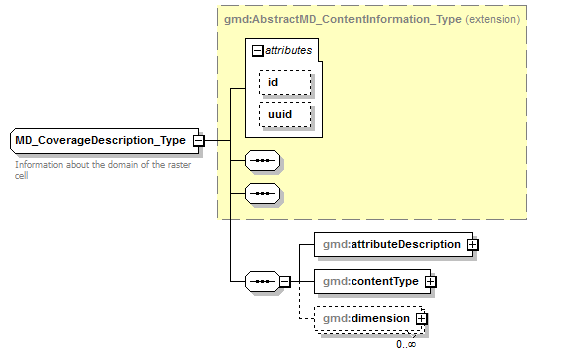

complexType MD_CoverageDescription_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:AbstractMD_ContentInformation_Type
properties	base  gmd:AbstractMD_ContentInformation_Type
children	gmd:attributeDescription gmd:contentType gmd:dimension
used by	element  MD_CoverageDescription complexType  MD_ImageDescription_Type
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Information about the domain of the raster cell
source	<complexType name="MD_CoverageDescription_Type">   <annotation>     <documentation>Information about the domain of the raster cell</documentation>   </annotation>   <complexContent>     <extension base="gmd:AbstractMD_ContentInformation_Type">       <sequence>         <element name="attributeDescription" type="gco:RecordType_PropertyType"/>         <element name="contentType" type="gmd:MD_CoverageContentTypeCode_PropertyType"/>         <element name="dimension" type="gmd:MD_RangeDimension_PropertyType" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

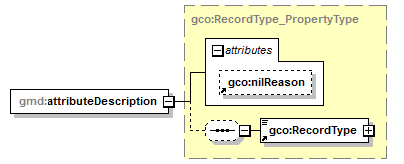

element MD_CoverageDescription_Type/attributeDescription

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:RecordType_PropertyType
properties	isRef  0 content  complex
children	gco:RecordType
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="attributeDescription" type="gco:RecordType_PropertyType"/>

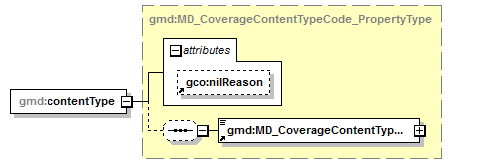

element MD_CoverageDescription_Type/contentType

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_CoverageContentTypeCode_PropertyType
properties	isRef  0 content  complex
children	gmd:MD_CoverageContentTypeCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="contentType" type="gmd:MD_CoverageContentTypeCode_PropertyType"/>

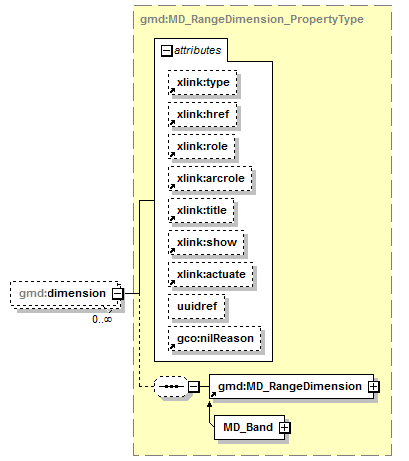

element MD_CoverageDescription_Type/dimension

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_RangeDimension_PropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gmd:MD_RangeDimension
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="dimension" type="gmd:MD_RangeDimension_PropertyType" minOccurs="0" maxOccurs="unbounded"/>
