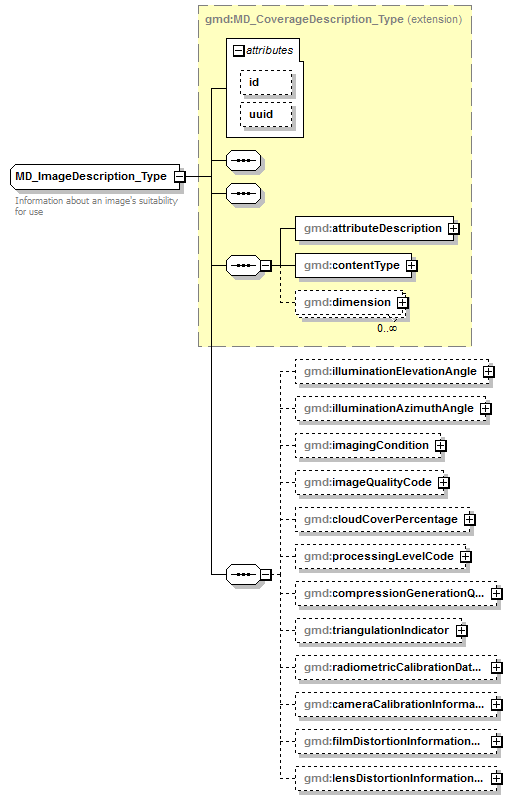

complexType MD_ImageDescription_Type

diagram
namespace	http://www.isotc211.org/2005/gmd
type	extension of gmd:MD_CoverageDescription_Type
properties	base  gmd:MD_CoverageDescription_Type
children	gmd:attributeDescription gmd:contentType gmd:dimension gmd:illuminationElevationAngle gmd:illuminationAzimuthAngle gmd:imagingCondition gmd:imageQualityCode gmd:cloudCoverPercentage gmd:processingLevelCode gmd:compressionGenerationQuantity gmd:triangulationIndicator gmd:radiometricCalibrationDataAvailability gmd:cameraCalibrationInformationAvailability gmd:filmDistortionInformationAvailability gmd:lensDistortionInformationAvailability
used by	element  MD_ImageDescription
attributes	Name   Type   Use   Default   Fixed   annotation id ID          uuid string
annotation	documentation Information about an image's suitability for use
source	<complexType name="MD_ImageDescription_Type">   <annotation>     <documentation>Information about an image's suitability for use</documentation>   </annotation>   <complexContent>     <extension base="gmd:MD_CoverageDescription_Type">       <sequence>         <element name="illuminationElevationAngle" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="illuminationAzimuthAngle" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="imagingCondition" type="gmd:MD_ImagingConditionCode_PropertyType" minOccurs="0"/>         <element name="imageQualityCode" type="gmd:MD_Identifier_PropertyType" minOccurs="0"/>         <element name="cloudCoverPercentage" type="gco:Real_PropertyType" minOccurs="0"/>         <element name="processingLevelCode" type="gmd:MD_Identifier_PropertyType" minOccurs="0"/>         <element name="compressionGenerationQuantity" type="gco:Integer_PropertyType" minOccurs="0"/>         <element name="triangulationIndicator" type="gco:Boolean_PropertyType" minOccurs="0"/>         <element name="radiometricCalibrationDataAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>         <element name="cameraCalibrationInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>         <element name="filmDistortionInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>         <element name="lensDistortionInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

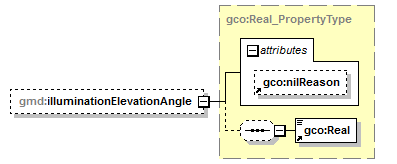

element MD_ImageDescription_Type/illuminationElevationAngle

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="illuminationElevationAngle" type="gco:Real_PropertyType" minOccurs="0"/>

element MD_ImageDescription_Type/illuminationAzimuthAngle

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="illuminationAzimuthAngle" type="gco:Real_PropertyType" minOccurs="0"/>

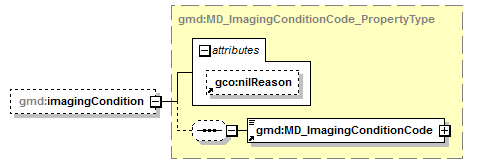

element MD_ImageDescription_Type/imagingCondition

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_ImagingConditionCode_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:MD_ImagingConditionCode
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="imagingCondition" type="gmd:MD_ImagingConditionCode_PropertyType" minOccurs="0"/>

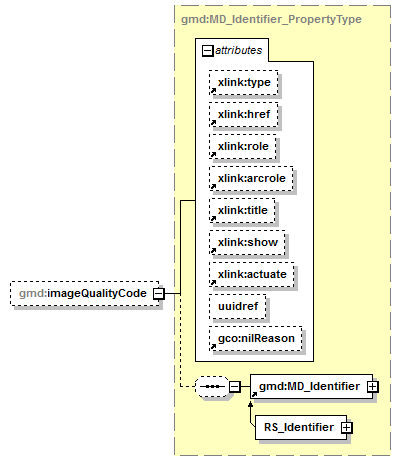

element MD_ImageDescription_Type/imageQualityCode

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_Identifier_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:MD_Identifier
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="imageQualityCode" type="gmd:MD_Identifier_PropertyType" minOccurs="0"/>

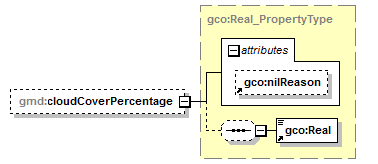

element MD_ImageDescription_Type/cloudCoverPercentage

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Real_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Real
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="cloudCoverPercentage" type="gco:Real_PropertyType" minOccurs="0"/>

element MD_ImageDescription_Type/processingLevelCode

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gmd:MD_Identifier_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gmd:MD_Identifier
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          uuidref string          nilReason gml:NilReasonType
source	<element name="processingLevelCode" type="gmd:MD_Identifier_PropertyType" minOccurs="0"/>

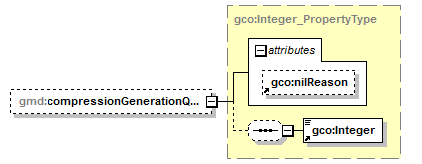

element MD_ImageDescription_Type/compressionGenerationQuantity

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Integer_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Integer
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="compressionGenerationQuantity" type="gco:Integer_PropertyType" minOccurs="0"/>

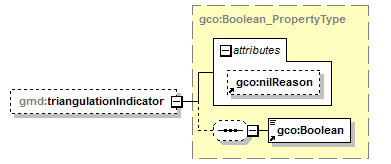

element MD_ImageDescription_Type/triangulationIndicator

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="triangulationIndicator" type="gco:Boolean_PropertyType" minOccurs="0"/>

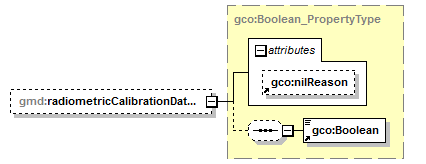

element MD_ImageDescription_Type/radiometricCalibrationDataAvailability

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="radiometricCalibrationDataAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>

element MD_ImageDescription_Type/cameraCalibrationInformationAvailability

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="cameraCalibrationInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>

element MD_ImageDescription_Type/filmDistortionInformationAvailability

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="filmDistortionInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>

element MD_ImageDescription_Type/lensDistortionInformationAvailability

diagram
namespace	http://www.isotc211.org/2005/gmd
type	gco:Boolean_PropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gco:Boolean
attributes	Name   Type   Use   Default   Fixed   annotation nilReason gml:NilReasonType
source	<element name="lensDistortionInformationAvailability" type="gco:Boolean_PropertyType" minOccurs="0"/>
