complexType OffsetCurveType

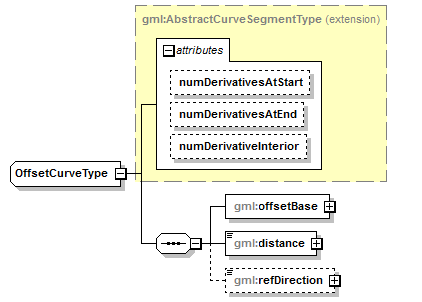

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractCurveSegmentType
properties	base  gml:AbstractCurveSegmentType
children	gml:offsetBase gml:distance gml:refDirection
used by	element  OffsetCurve
attributes	Name   Type   Use   Default   Fixed   annotation numDerivativesAtStart integer    0      numDerivativesAtEnd integer    0      numDerivativeInterior integer    0
source	<complexType name="OffsetCurveType">   <complexContent>     <extension base="gml:AbstractCurveSegmentType">       <sequence>         <element name="offsetBase" type="gml:CurvePropertyType"/>         <element name="distance" type="gml:LengthType"/>         <element name="refDirection" type="gml:VectorType" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

element OffsetCurveType/offsetBase

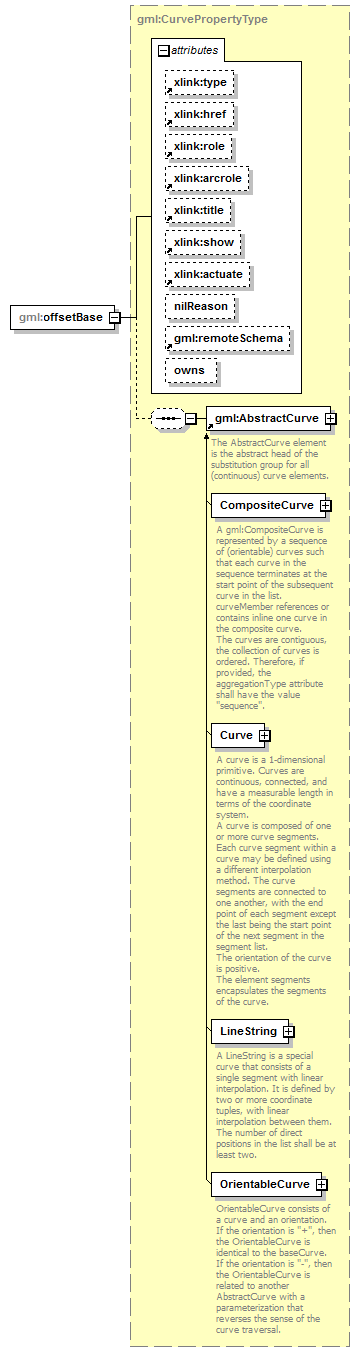

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:CurvePropertyType
properties	isRef  0 content  complex
children	gml:AbstractCurve
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          nilReason gml:NilReasonType          remoteSchema anyURI          appinfo deprecated owns boolean    false
source	<element name="offsetBase" type="gml:CurvePropertyType"/>

element OffsetCurveType/distance

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:LengthType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation uom gml:UomIdentifier required
source	<element name="distance" type="gml:LengthType"/>

element OffsetCurveType/refDirection

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:VectorType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation srsName anyURI          srsDimension positiveInteger          axisLabels gml:NCNameList          uomLabels gml:NCNameList
source	<element name="refDirection" type="gml:VectorType" minOccurs="0"/>
