complexType CountRangeType

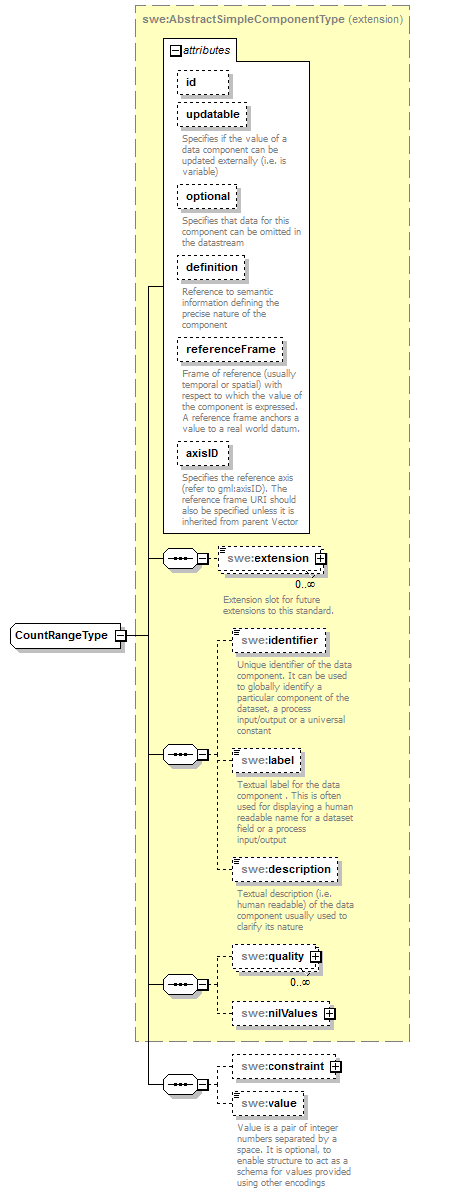

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractSimpleComponentType
properties	base  swe:AbstractSimpleComponentType
children	swe:extension swe:identifier swe:label swe:description swe:quality swe:nilValues swe:constraint swe:value
used by	element  CountRange
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component referenceFrame anyURI optional         documentation Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum. axisID string optional         documentation Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
source	<complexType name="CountRangeType">   <complexContent>     <extension base="swe:AbstractSimpleComponentType">       <sequence>         <element name="constraint" type="swe:AllowedValuesPropertyType" minOccurs="0" maxOccurs="1"/>         <element name="value" type="swe:IntegerPair" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>Value is a pair of integer numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>           </annotation>         </element>       </sequence>     </extension>   </complexContent> </complexType>

element CountRangeType/constraint

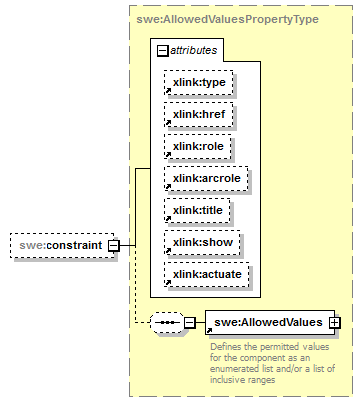

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:AllowedValuesPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	swe:AllowedValues
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
source	<element name="constraint" type="swe:AllowedValuesPropertyType" minOccurs="0" maxOccurs="1"/>

element CountRangeType/value

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:IntegerPair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  length  2
annotation	documentation Value is a pair of integer numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings
source	<element name="value" type="swe:IntegerPair" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>Value is a pair of integer numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>   </annotation> </element>
