complexType AbstractSimpleComponentType

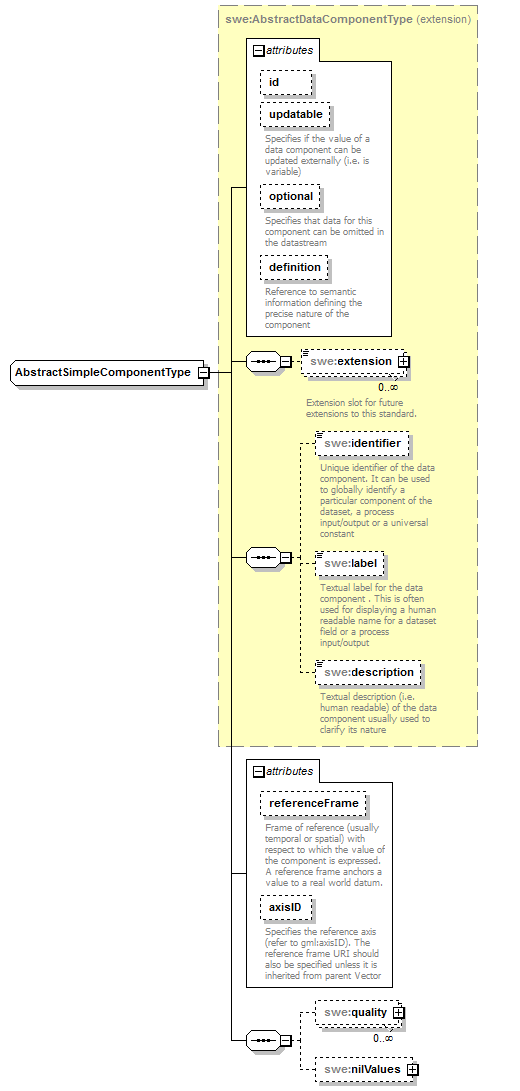

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentType
properties	base  swe:AbstractDataComponentType abstract  true
children	swe:extension swe:identifier swe:label swe:description swe:quality swe:nilValues
used by	element  AbstractSimpleComponent complexTypes  BooleanType CategoryRangeType CategoryType CountRangeType CountType QuantityRangeType QuantityType TextType TimeRangeType TimeType
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component referenceFrame anyURI optional         documentation Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum. axisID string optional         documentation Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
source	<complexType name="AbstractSimpleComponentType" abstract="true">   <complexContent>     <extension base="swe:AbstractDataComponentType">       <sequence>         <element name="quality" type="swe:QualityPropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element name="nilValues" type="swe:NilValuesPropertyType" minOccurs="0" maxOccurs="1"/>       </sequence>       <attribute name="referenceFrame" type="anyURI" use="optional">         <annotation>           <documentation>Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.</documentation>         </annotation>       </attribute>       <attribute name="axisID" type="string" use="optional">         <annotation>           <documentation>Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute AbstractSimpleComponentType/@referenceFrame

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.
source	<attribute name="referenceFrame" type="anyURI" use="optional">   <annotation>     <documentation>Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum.</documentation>   </annotation> </attribute>

attribute AbstractSimpleComponentType/@axisID

type	string
properties	isRef  0 use  optional
annotation	documentation Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector
source	<attribute name="axisID" type="string" use="optional">   <annotation>     <documentation>Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector</documentation>   </annotation> </attribute>

element AbstractSimpleComponentType/quality

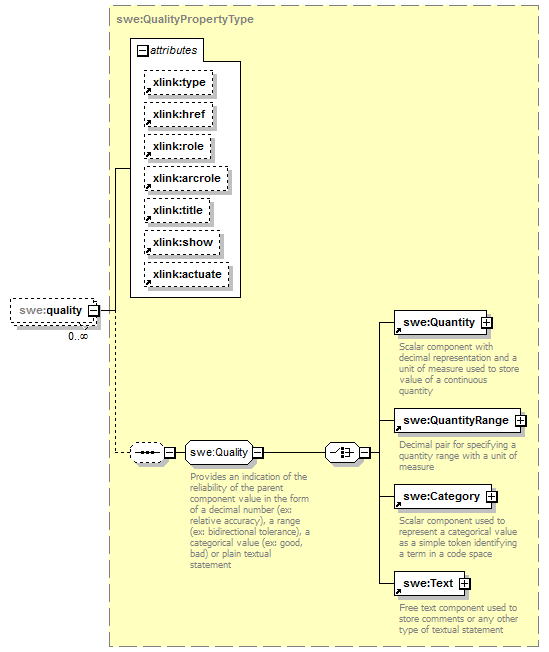

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:QualityPropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	swe:Quantity swe:QuantityRange swe:Category swe:Text
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
source	<element name="quality" type="swe:QualityPropertyType" minOccurs="0" maxOccurs="unbounded"/>

element AbstractSimpleComponentType/nilValues

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:NilValuesPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	swe:NilValues
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
source	<element name="nilValues" type="swe:NilValuesPropertyType" minOccurs="0" maxOccurs="1"/>
