complexType TimeRangeType

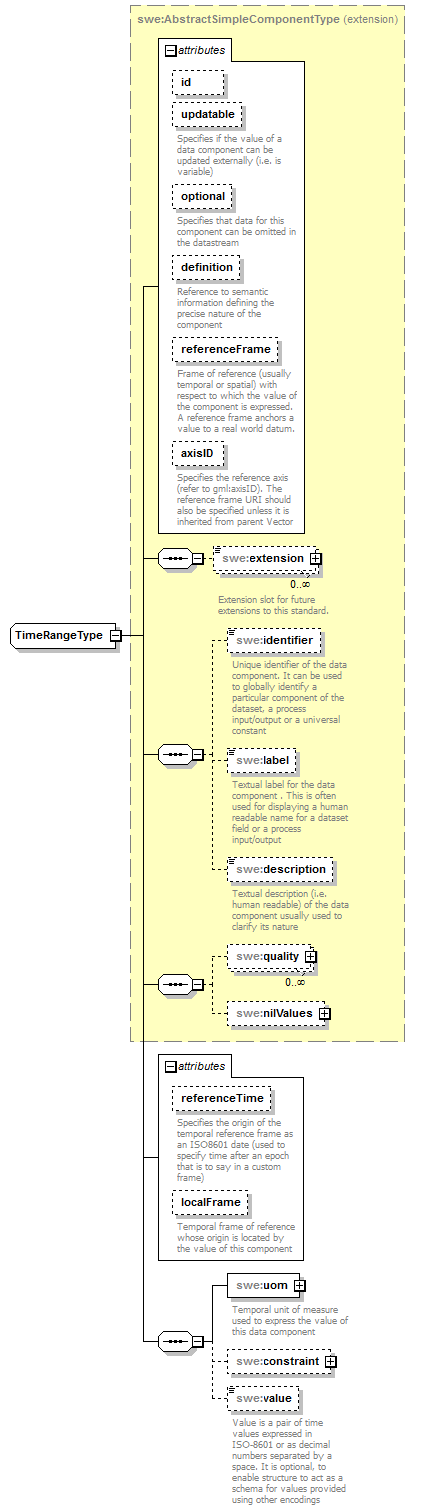

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractSimpleComponentType
properties	base  swe:AbstractSimpleComponentType
children	swe:extension swe:identifier swe:label swe:description swe:quality swe:nilValues swe:uom swe:constraint swe:value
used by	element  TimeRange
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component referenceFrame anyURI optional         documentation Frame of reference (usually temporal or spatial) with respect to which the value of the component is expressed. A reference frame anchors a value to a real world datum. axisID string optional         documentation Specifies the reference axis (refer to gml:axisID). The reference frame URI should also be specified unless it is inherited from parent Vector referenceTime dateTime optional         documentation Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame) localFrame anyURI optional         documentation Temporal frame of reference whose origin is located by the value of this component
source	<complexType name="TimeRangeType">   <complexContent>     <extension base="swe:AbstractSimpleComponentType">       <sequence>         <element name="uom" type="swe:UnitReference">           <annotation>             <documentation>Temporal unit of measure used to express the value of this data component</documentation>           </annotation>         </element>         <element name="constraint" type="swe:AllowedTimesPropertyType" minOccurs="0" maxOccurs="1"/>         <element name="value" type="swe:TimePair" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>Value is a pair of time values expressed in ISO-8601 or as decimal numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>           </annotation>         </element>       </sequence>       <attribute name="referenceTime" type="dateTime" use="optional">         <annotation>           <documentation>Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)</documentation>         </annotation>       </attribute>       <attribute name="localFrame" type="anyURI" use="optional">         <annotation>           <documentation>Temporal frame of reference whose origin is located by the value of this component</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute TimeRangeType/@referenceTime

type	dateTime
properties	isRef  0 use  optional
annotation	documentation Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)
source	<attribute name="referenceTime" type="dateTime" use="optional">   <annotation>     <documentation>Specifies the origin of the temporal reference frame as an ISO8601 date (used to specify time after an epoch that is to say in a custom frame)</documentation>   </annotation> </attribute>

attribute TimeRangeType/@localFrame

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Temporal frame of reference whose origin is located by the value of this component
source	<attribute name="localFrame" type="anyURI" use="optional">   <annotation>     <documentation>Temporal frame of reference whose origin is located by the value of this component</documentation>   </annotation> </attribute>

element TimeRangeType/uom

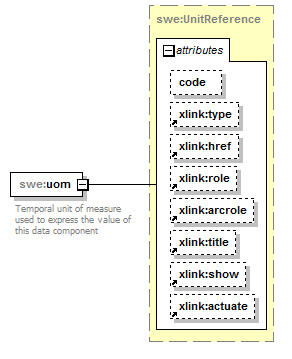

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:UnitReference
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation code swe:UomSymbol optional         type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation Temporal unit of measure used to express the value of this data component
source	<element name="uom" type="swe:UnitReference">   <annotation>     <documentation>Temporal unit of measure used to express the value of this data component</documentation>   </annotation> </element>

element TimeRangeType/constraint

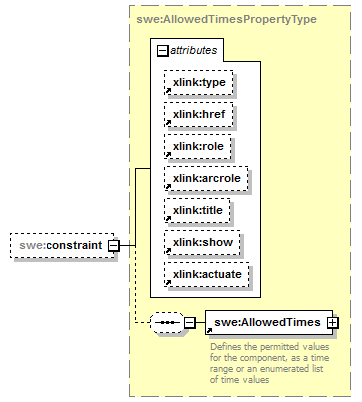

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:AllowedTimesPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	swe:AllowedTimes
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
source	<element name="constraint" type="swe:AllowedTimesPropertyType" minOccurs="0" maxOccurs="1"/>

element TimeRangeType/value

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:TimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  length  2
annotation	documentation Value is a pair of time values expressed in ISO-8601 or as decimal numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings
source	<element name="value" type="swe:TimePair" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>Value is a pair of time values expressed in ISO-8601 or as decimal numbers separated by a space. It is optional, to enable structure to act as a schema for values provided using other encodings</documentation>   </annotation> </element>
