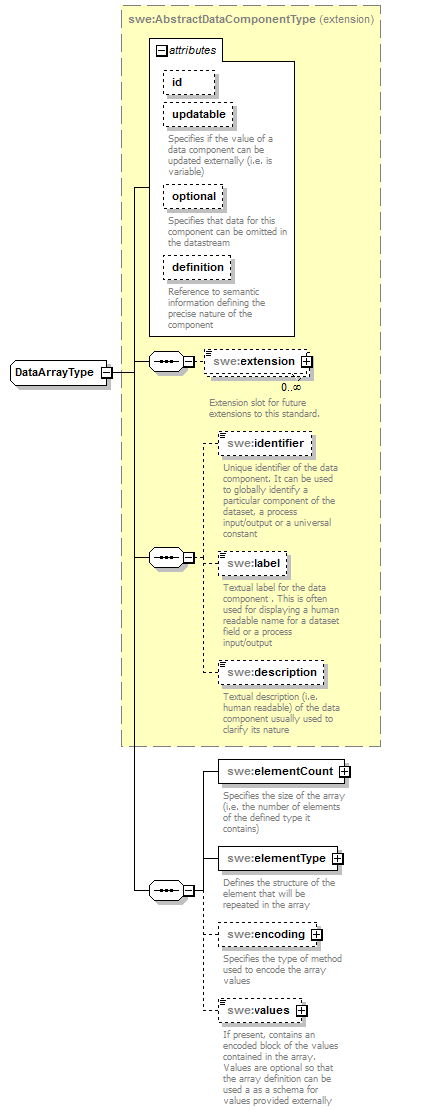

complexType DataArrayType

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentType
properties	base  swe:AbstractDataComponentType
children	swe:extension swe:identifier swe:label swe:description swe:elementCount swe:elementType swe:encoding swe:values
used by	element  DataArray complexType  MatrixType
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component
source	<complexType name="DataArrayType">   <complexContent>     <extension base="swe:AbstractDataComponentType">       <sequence>         <element name="elementCount" type="swe:CountPropertyType">           <annotation>             <documentation>Specifies the size of the array (i.e. the number of elements of the defined type it contains)</documentation>           </annotation>         </element>         <element name="elementType">           <annotation>             <documentation>Defines the structure of the element that will be repeated in the array</documentation>           </annotation>           <complexType>             <complexContent>               <extension base="swe:AbstractDataComponentPropertyType">                 <attribute name="name" type="NCName" use="required"/>               </extension>             </complexContent>           </complexType>         </element>         <element name="encoding" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>Specifies the type of method used to encode the array values</documentation>           </annotation>           <complexType>             <sequence>               <element ref="swe:AbstractEncoding"/>             </sequence>           </complexType>         </element>         <element name="values" type="swe:EncodedValuesPropertyType" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>If present, contains an encoded block of the values contained in the array. Values are optional so that the array definition can be used a as a schema for values provided externally</documentation>           </annotation>         </element>       </sequence>     </extension>   </complexContent> </complexType>

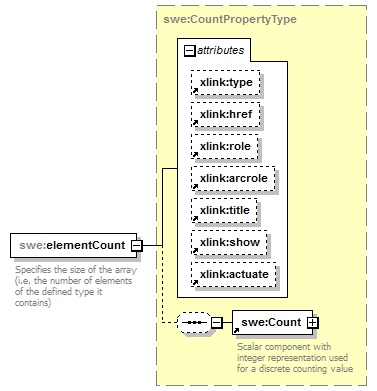

element DataArrayType/elementCount

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:CountPropertyType
properties	isRef  0 content  complex
children	swe:Count
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation Specifies the size of the array (i.e. the number of elements of the defined type it contains)
source	<element name="elementCount" type="swe:CountPropertyType">   <annotation>     <documentation>Specifies the size of the array (i.e. the number of elements of the defined type it contains)</documentation>   </annotation> </element>

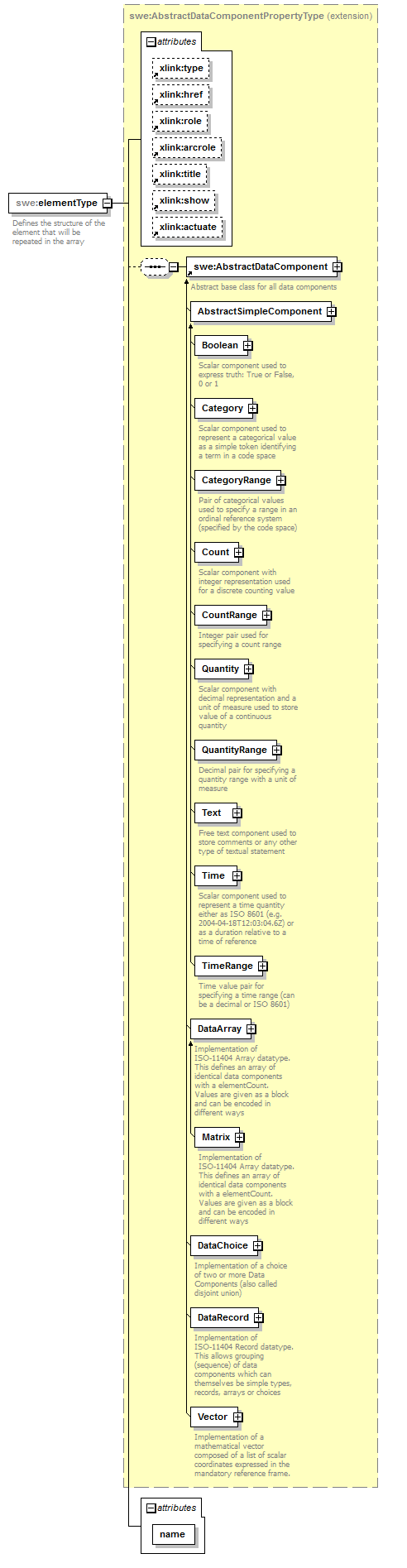

element DataArrayType/elementType

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentPropertyType
properties	isRef  0 content  complex
children	swe:AbstractDataComponent
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          name NCName required
annotation	documentation Defines the structure of the element that will be repeated in the array
source	<element name="elementType">   <annotation>     <documentation>Defines the structure of the element that will be repeated in the array</documentation>   </annotation>   <complexType>     <complexContent>       <extension base="swe:AbstractDataComponentPropertyType">         <attribute name="name" type="NCName" use="required"/>       </extension>     </complexContent>   </complexType> </element>

attribute DataArrayType/elementType/@name

type	NCName
properties	isRef  0 use  required
source	<attribute name="name" type="NCName" use="required"/>

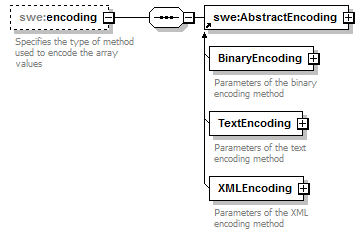

element DataArrayType/encoding

diagram
namespace	http://www.opengis.net/swe/2.0
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	swe:AbstractEncoding
annotation	documentation Specifies the type of method used to encode the array values
source	<element name="encoding" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>Specifies the type of method used to encode the array values</documentation>   </annotation>   <complexType>     <sequence>       <element ref="swe:AbstractEncoding"/>     </sequence>   </complexType> </element>

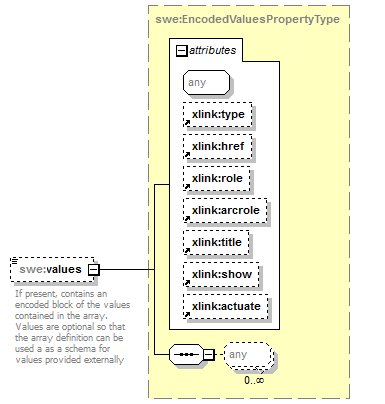

element DataArrayType/values

diagram
namespace	http://www.opengis.net/swe/2.0
type	swe:EncodedValuesPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation If present, contains an encoded block of the values contained in the array. Values are optional so that the array definition can be used a as a schema for values provided externally
source	<element name="values" type="swe:EncodedValuesPropertyType" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>If present, contains an encoded block of the values contained in the array. Values are optional so that the array definition can be used a as a schema for values provided externally</documentation>   </annotation> </element>
