complexType MatrixType

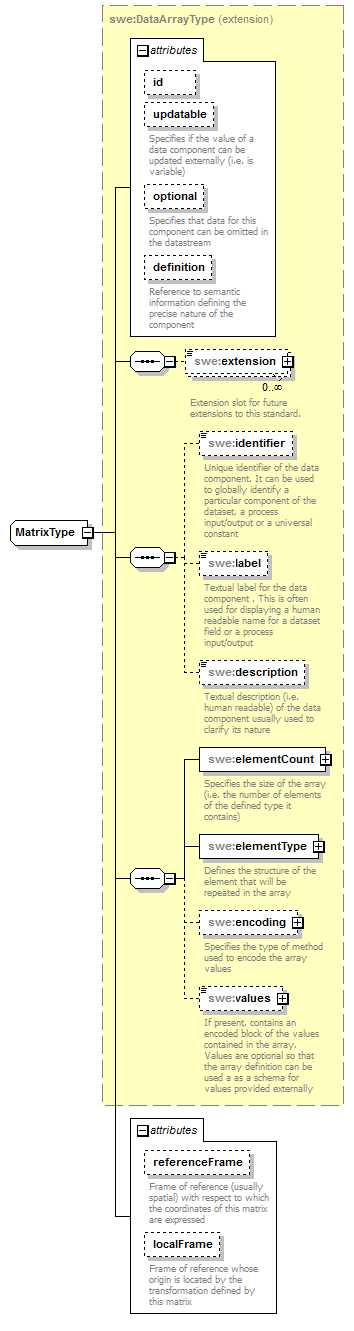

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:DataArrayType
properties	base  swe:DataArrayType
children	swe:extension swe:identifier swe:label swe:description swe:elementCount swe:elementType swe:encoding swe:values
used by	element  Matrix
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component referenceFrame anyURI optional         documentation Frame of reference (usually spatial) with respect to which the coordinates of this matrix are expressed localFrame anyURI optional         documentation Frame of reference whose origin is located by the transformation defined by this matrix
source	<complexType name="MatrixType">   <complexContent>     <extension base="swe:DataArrayType">       <attribute name="referenceFrame" type="anyURI" use="optional">         <annotation>           <documentation>Frame of reference (usually spatial) with respect to which the coordinates of this matrix are expressed</documentation>         </annotation>       </attribute>       <attribute name="localFrame" type="anyURI" use="optional">         <annotation>           <documentation>Frame of reference whose origin is located by the transformation defined by this matrix</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute MatrixType/@referenceFrame

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Frame of reference (usually spatial) with respect to which the coordinates of this matrix are expressed
source	<attribute name="referenceFrame" type="anyURI" use="optional">   <annotation>     <documentation>Frame of reference (usually spatial) with respect to which the coordinates of this matrix are expressed</documentation>   </annotation> </attribute>

attribute MatrixType/@localFrame

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Frame of reference whose origin is located by the transformation defined by this matrix
source	<attribute name="localFrame" type="anyURI" use="optional">   <annotation>     <documentation>Frame of reference whose origin is located by the transformation defined by this matrix</documentation>   </annotation> </attribute>
