complexType TopoSolidType

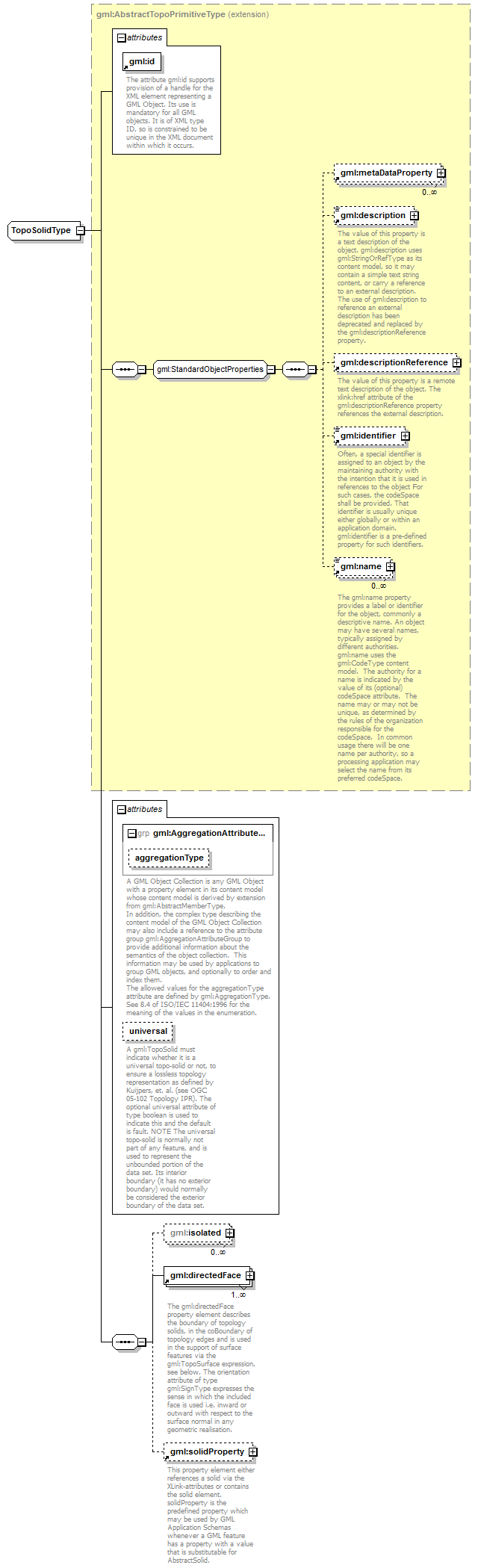

diagram
namespace	http://www.opengis.net/gml/3.2
type	extension of gml:AbstractTopoPrimitiveType
properties	base  gml:AbstractTopoPrimitiveType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:isolated gml:directedFace gml:solidProperty
used by	element  TopoSolid
attributes	Name   Type   Use   Default   Fixed   annotation id ID required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. aggregationType gml:AggregationType          universal boolean optional   false      documentation A gml:TopoSolid must indicate whether it is a universal topo-solid or not, to ensure a lossless topology representation as defined by Kuijpers, et. al. (see OGC 05-102 Topology IPR). The optional universal attribute of type boolean is used to indicate this and the default is fault. NOTE The universal topo-solid is normally not part of any feature, and is used to represent the unbounded portion of the data set. Its interior boundary (it has no exterior boundary) would normally be considered the exterior boundary of the data set.
source	<complexType name="TopoSolidType">   <complexContent>     <extension base="gml:AbstractTopoPrimitiveType">       <sequence>         <element name="isolated" type="gml:NodeOrEdgePropertyType" minOccurs="0" maxOccurs="unbounded"/>         <element ref="gml:directedFace" maxOccurs="unbounded"/>         <element ref="gml:solidProperty" minOccurs="0"/>       </sequence>       <attributeGroup ref="gml:AggregationAttributeGroup"/>       <attribute name="universal" type="boolean" use="optional" default="false">         <annotation>           <documentation>A gml:TopoSolid must indicate whether it is a universal topo-solid or not, to ensure a lossless topology representation as defined by Kuijpers, et. al. (see OGC 05-102 Topology IPR). The optional universal attribute of type boolean is used to indicate this and the default is fault. NOTE The universal topo-solid is normally not part of any feature, and is used to represent the unbounded portion of the data set. Its interior boundary (it has no exterior boundary) would normally be considered the exterior boundary of the data set.</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute TopoSolidType/@universal

type	boolean
properties	isRef  0 default  false use  optional
annotation	documentation A gml:TopoSolid must indicate whether it is a universal topo-solid or not, to ensure a lossless topology representation as defined by Kuijpers, et. al. (see OGC 05-102 Topology IPR). The optional universal attribute of type boolean is used to indicate this and the default is fault. NOTE The universal topo-solid is normally not part of any feature, and is used to represent the unbounded portion of the data set. Its interior boundary (it has no exterior boundary) would normally be considered the exterior boundary of the data set.
source	<attribute name="universal" type="boolean" use="optional" default="false">   <annotation>     <documentation>A gml:TopoSolid must indicate whether it is a universal topo-solid or not, to ensure a lossless topology representation as defined by Kuijpers, et. al. (see OGC 05-102 Topology IPR). The optional universal attribute of type boolean is used to indicate this and the default is fault. NOTE The universal topo-solid is normally not part of any feature, and is used to represent the unbounded portion of the data set. Its interior boundary (it has no exterior boundary) would normally be considered the exterior boundary of the data set.</documentation>   </annotation> </attribute>

element TopoSolidType/isolated

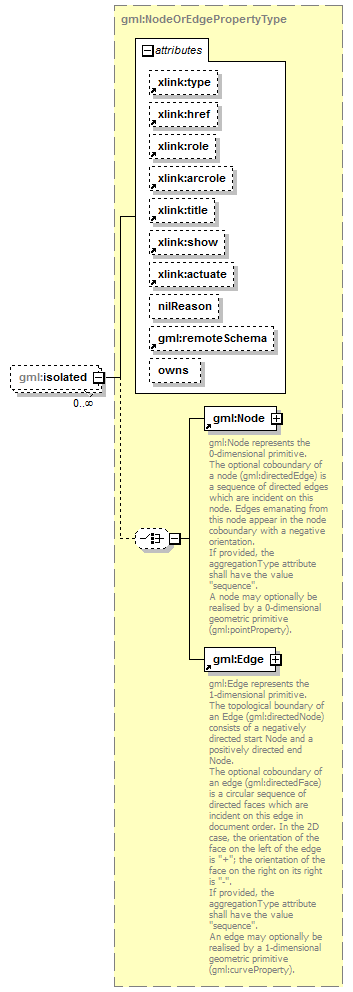

diagram
namespace	http://www.opengis.net/gml/3.2
type	gml:NodeOrEdgePropertyType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	gml:Node gml:Edge
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          nilReason gml:NilReasonType          remoteSchema anyURI          appinfo deprecated owns boolean    false
source	<element name="isolated" type="gml:NodeOrEdgePropertyType" minOccurs="0" maxOccurs="unbounded"/>
