complexType PhysicalSystemType

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	extension of sml:AbstractPhysicalProcessType
properties	base  sml:AbstractPhysicalProcessType
children	gml:metaDataProperty gml:description gml:descriptionReference gml:identifier gml:name gml:boundedBy gml:location sml:extension sml:keywords sml:identification sml:classification sml:validTime sml:securityConstraints sml:legalConstraints sml:characteristics sml:capabilities sml:contacts sml:documentation sml:history sml:typeOf sml:configuration sml:featuresOfInterest sml:inputs sml:outputs sml:parameters sml:modes sml:attachedTo sml:localReferenceFrame sml:temporalReferenceFrame sml:position sml:components sml:connections
used by	element  PhysicalSystem
attributes	Name   Type   Use   Default   Fixed   annotation id ID required         documentation The attribute gml:id supports provision of a handle for the XML element representing a GML Object. Its use is mandatory for all GML objects. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. definition anyURI
source	<complexType name="PhysicalSystemType">   <complexContent>     <extension base="sml:AbstractPhysicalProcessType">       <sequence>         <element name="components" type="sml:ComponentListPropertyType" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>The collection of processes that make up a process aggregation.</documentation>           </annotation>         </element>         <element name="connections" type="sml:ConnectionListPropertyType" minOccurs="0" maxOccurs="1">           <annotation>             <documentation>The explicit definition of data links between outputs, inputs, and parameters of the components within an aggregate process.</documentation>           </annotation>         </element>       </sequence>     </extension>   </complexContent> </complexType>

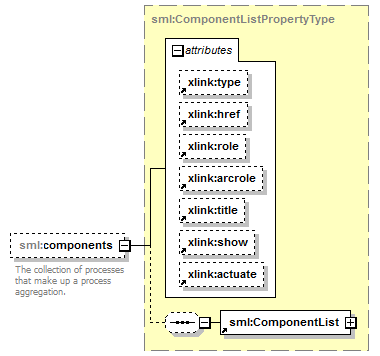

element PhysicalSystemType/components

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ComponentListPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	sml:ComponentList
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation The collection of processes that make up a process aggregation.
source	<element name="components" type="sml:ComponentListPropertyType" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>The collection of processes that make up a process aggregation.</documentation>   </annotation> </element>

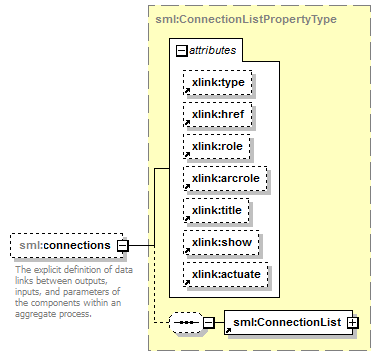

element PhysicalSystemType/connections

diagram
namespace	http://www.opengis.net/sensorML/2.0
type	sml:ConnectionListPropertyType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	sml:ConnectionList
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType
annotation	documentation The explicit definition of data links between outputs, inputs, and parameters of the components within an aggregate process.
source	<element name="connections" type="sml:ConnectionListPropertyType" minOccurs="0" maxOccurs="1">   <annotation>     <documentation>The explicit definition of data links between outputs, inputs, and parameters of the components within an aggregate process.</documentation>   </annotation> </element>
