complexType VectorType

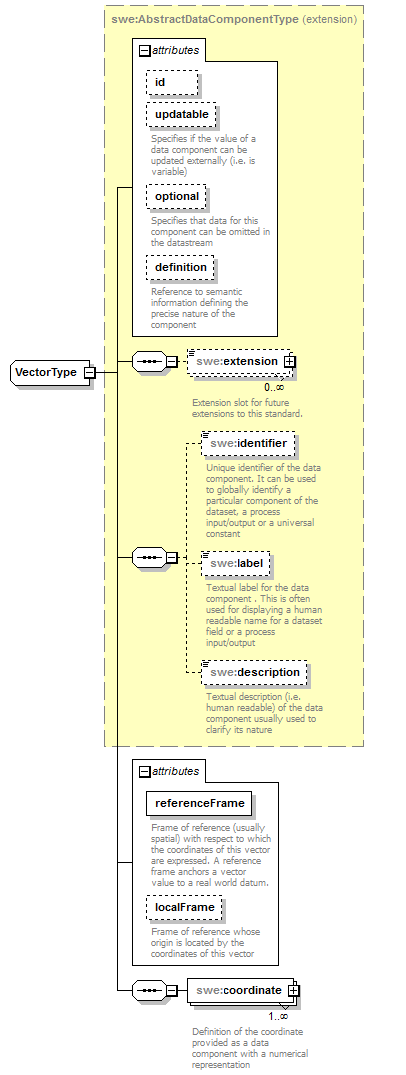

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AbstractDataComponentType
properties	base  swe:AbstractDataComponentType
children	swe:extension swe:identifier swe:label swe:description swe:coordinate
used by	element  Vector
attributes	Name   Type   Use   Default   Fixed   annotation id ID optional         updatable boolean optional         documentation Specifies if the value of a data component can be updated externally (i.e. is variable) optional boolean optional   false      documentation Specifies that data for this component can be omitted in the datastream definition anyURI optional         documentation Reference to semantic information defining the precise nature of the component referenceFrame anyURI required         documentation Frame of reference (usually spatial) with respect to which the coordinates of this vector are expressed. A reference frame anchors a vector value to a real world datum. localFrame anyURI optional         documentation Frame of reference whose origin is located by the coordinates of this vector
source	<complexType name="VectorType">   <complexContent>     <extension base="swe:AbstractDataComponentType">       <sequence>         <element name="coordinate" minOccurs="1" maxOccurs="unbounded">           <annotation>             <documentation>Definition of the coordinate provided as a data component with a numerical representation</documentation>           </annotation>           <complexType>             <complexContent>               <extension base="swe:AnyNumericalPropertyType">                 <attribute name="name" type="NCName" use="required"/>               </extension>             </complexContent>           </complexType>         </element>       </sequence>       <attribute name="referenceFrame" type="anyURI" use="required">         <annotation>           <documentation>Frame of reference (usually spatial) with respect to which the coordinates of this vector are expressed. A reference frame anchors a vector value to a real world datum.</documentation>         </annotation>       </attribute>       <attribute name="localFrame" type="anyURI" use="optional">         <annotation>           <documentation>Frame of reference whose origin is located by the coordinates of this vector</documentation>         </annotation>       </attribute>     </extension>   </complexContent> </complexType>

attribute VectorType/@referenceFrame

type	anyURI
properties	isRef  0 use  required
annotation	documentation Frame of reference (usually spatial) with respect to which the coordinates of this vector are expressed. A reference frame anchors a vector value to a real world datum.
source	<attribute name="referenceFrame" type="anyURI" use="required">   <annotation>     <documentation>Frame of reference (usually spatial) with respect to which the coordinates of this vector are expressed. A reference frame anchors a vector value to a real world datum.</documentation>   </annotation> </attribute>

attribute VectorType/@localFrame

type	anyURI
properties	isRef  0 use  optional
annotation	documentation Frame of reference whose origin is located by the coordinates of this vector
source	<attribute name="localFrame" type="anyURI" use="optional">   <annotation>     <documentation>Frame of reference whose origin is located by the coordinates of this vector</documentation>   </annotation> </attribute>

element VectorType/coordinate

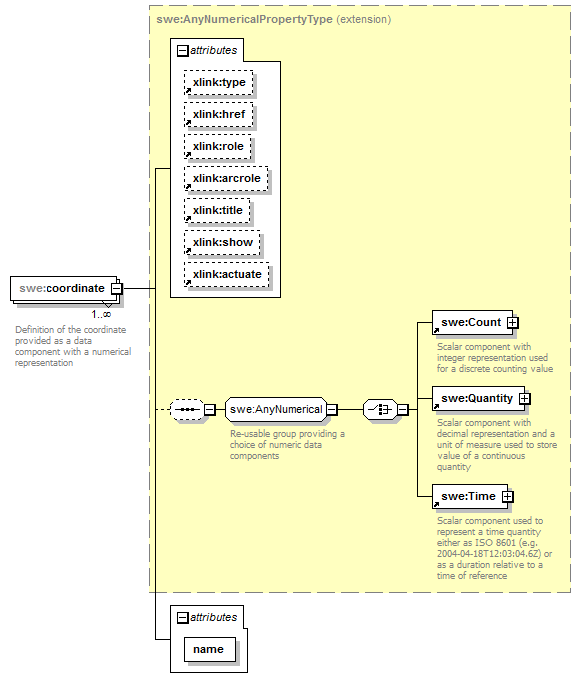

diagram
namespace	http://www.opengis.net/swe/2.0
type	extension of swe:AnyNumericalPropertyType
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	swe:Count swe:Quantity swe:Time
attributes	Name   Type   Use   Default   Fixed   annotation type xlink:typeType       simple   href xlink:hrefType          role xlink:roleType          arcrole xlink:arcroleType          title xlink:titleAttrType          show xlink:showType          actuate xlink:actuateType          name NCName required
annotation	documentation Definition of the coordinate provided as a data component with a numerical representation
source	<element name="coordinate" minOccurs="1" maxOccurs="unbounded">   <annotation>     <documentation>Definition of the coordinate provided as a data component with a numerical representation</documentation>   </annotation>   <complexType>     <complexContent>       <extension base="swe:AnyNumericalPropertyType">         <attribute name="name" type="NCName" use="required"/>       </extension>     </complexContent>   </complexType> </element>

attribute VectorType/coordinate/@name

type	NCName
properties	isRef  0 use  required
source	<attribute name="name" type="NCName" use="required"/>
